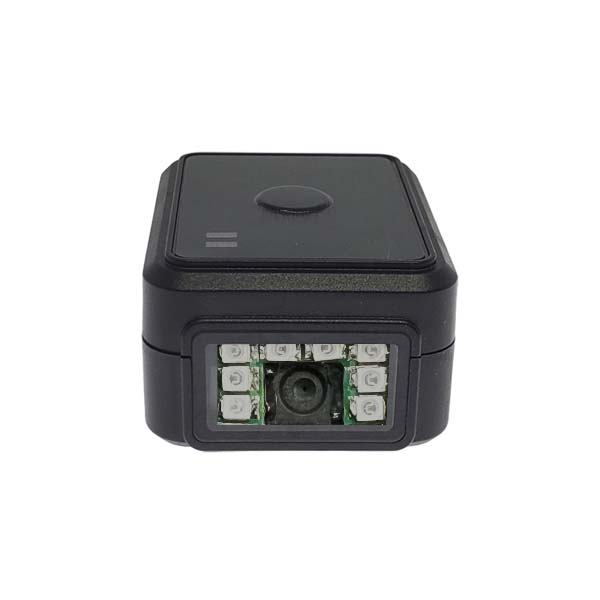

IR Barcode Scanner Fixed Focus (FFX-50D-IR)

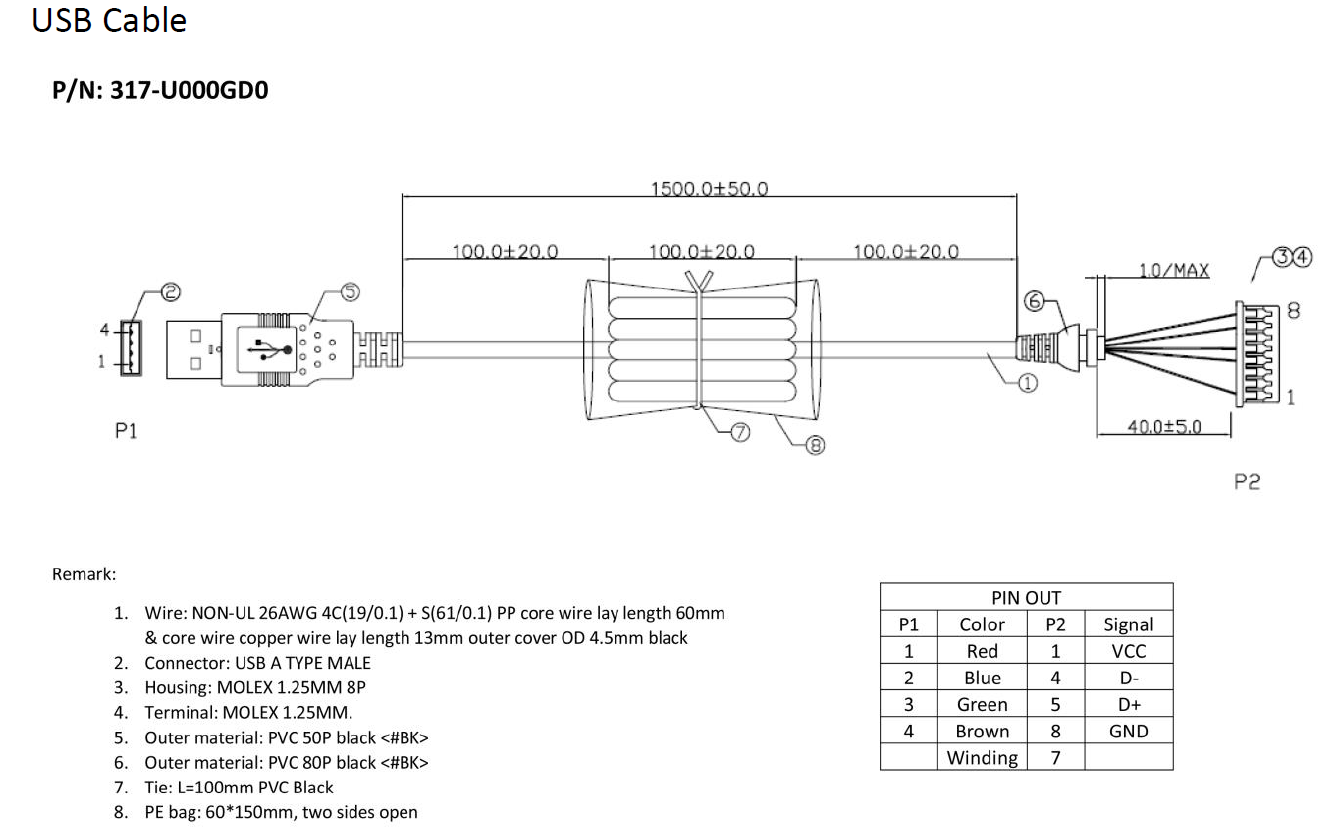

- Compliant to USB2.0 (option RS-232)
- Optical sensor: 1280 (H) x 800 (V) Pixels

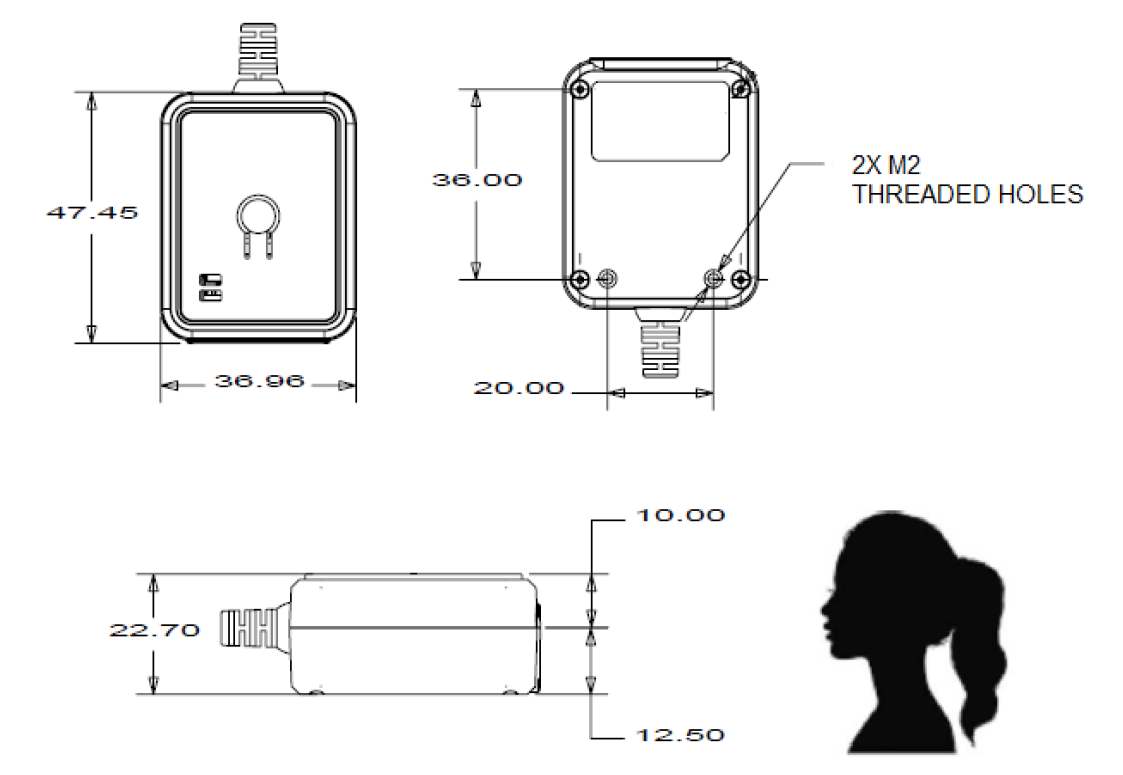

- Compact size: 35mm (L) x 35.5mm (W) x 20.2mm (H)
- Resolution: 3 mil Code 39, 5 mil QR Code
- Reading printing barcodes and e-barcodes
- Infrared image anti-counterfeiting (IR850nm)
Fangtec FFX-50D-IR fixed area imager is engineered to decode most of 1D, PDF and 2D codes. It’s excellent for reading smart phone QR codes and barcodes and easy to integrate into POS or kiosk system. It provides wide range of applications: such as retail stores connect to point-of-sale terminals to use mobile coupons, mobile loyalty cards promoting sales. Factory can integrate on conveyor for production tracking or integrate on kiosk for payment usage.
規格書下載
產品應用
| Input Voltage | DC 5V +/-5% |
| Current | 485mA (max) |
| Stand-by | 90mA |
| Light source | IR850nm LED x 8 |
| Image | 640 pixel(H) x 480 pixels(V), Global Shutter |
| ScanRate | 120FPS |
| Scanning angle | Roll: 360°, Pitch: ±60°, Skew: ±60° |
| Field of View | Horizontal 36°, Vertical 28° |
| Preview H/V | 640 pixels(H) x 480 pixels(V) |
| Rad | When the scanner is turning on. |
| Blue | The scanner has read a code successfully. |
| Buzzer | The volume can be adjusted to accommodate application needs |
