Narrow bezel FHD (AV6020B6F)
This documentation describes product specifications to ensure design to meet customer’s requirements.

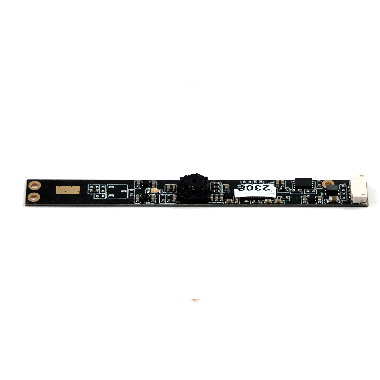

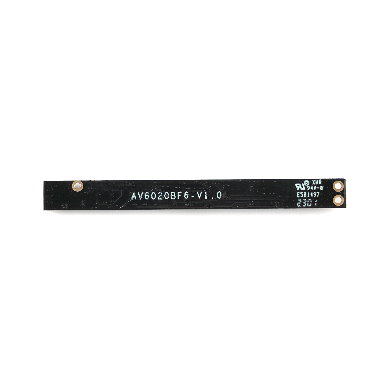

AV6020B6F-L1-DQ0 is an USB Video Class (UVC) compliant camera module with video feature, designed for portable notebook PC image applications. It is made up of the following components, CMOS sensor, lens, holder, backend, PCB, image processing circuit and connector, to come out a digital video device. It shall be a reliable device which is embedded in notebook PC to transfer video data through USB interface to notebook PC.
AV6020B6F-L1-DQ0 not only offers up to FHD resolution (1920X1080) for image applications to take still image, but also offers video stream for end user to preview/record motion image through USB 2.0 interface. And It can support FHD(1920x1080) resolution up to 60fps at MJPG mode.
AV6020B6F-L1-DQ0 builds in AE, AWB and AGC for automatic image control supported by CMOS sensor. For image quality control, it also offers UVC standardized User Interface (UI) to let end user well tune image by property page.
規格書下載

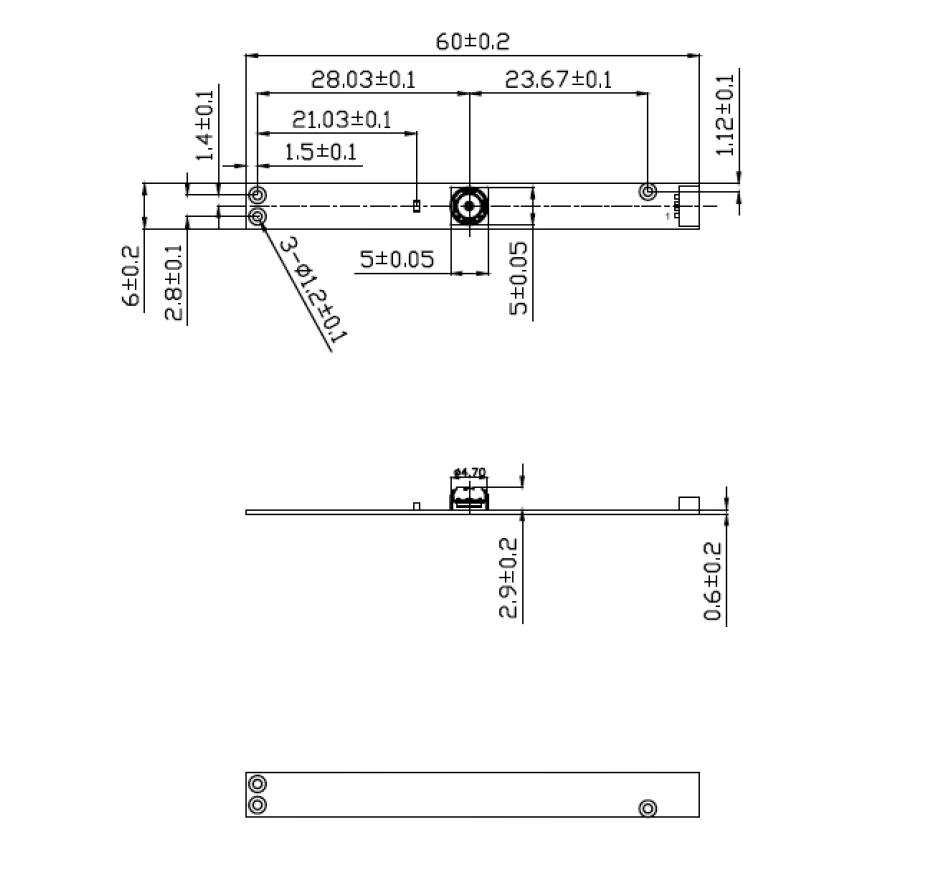

| Dimension (LWH/mm) | 60 x 6 x 3.5 mm (include PCB Thickness) |
| Power Consumption | +4.75V ~ +5.25V |
| Output Interface | USB2.0 (480Mbit/sec) & USB1.1 |
| Operating Temperature | 0℃ to +60℃ |
| Field of View |
DFOV 68.6° HFOV 61.1° VFOV 36.5° |
| Focus Range | 60cm Fix Focus |
| Type | Backend IC with USB2.0 interface |
| Compatibility | USB Video class Compliant, Microsoft WHQL Certified |
| Support Sensor Size | Support Most popular CMOS sensors |
| OS Supported | Win10 Win11, Android , Linux , Mac, Thin-client |
| Optical format | 1/7.25-inch Full HD CMOS Sensor |
| Active resolution | 1920H×1080V |
| Unit pixel size | 1.116μm x 1.116μm |
