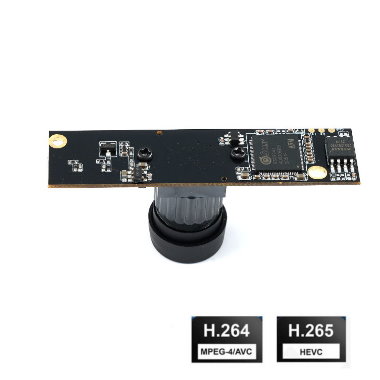

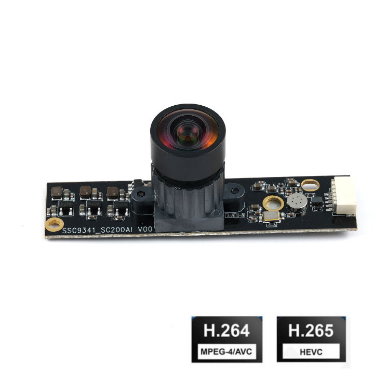

HDR 1080P H.264/H.265/MJPEG Low Light Camera (SS6020C11)
The HDR scheme used is multi−exposure HDR. This allows the sensor to handle up to 100 dB of dynamic range. In HDR mode, the sensor sequentially captures two exposures by maintaining two separate read and reset pointers that are interleaved within the rolling shutter readout.
SS6020C11-S2-6G0 not only offers up to Full HD resolution (1920X1080) for image applications to take still image, but also offers video stream for end user to preview/record motion image through USB 2.0 interface. And It can support FHD ( 1920x1080) resolution up to 30 fps at MJPEG mode, 1080P resolution (1920x1080) up to 30fps at H.264 / H.265 mode.
產品應用

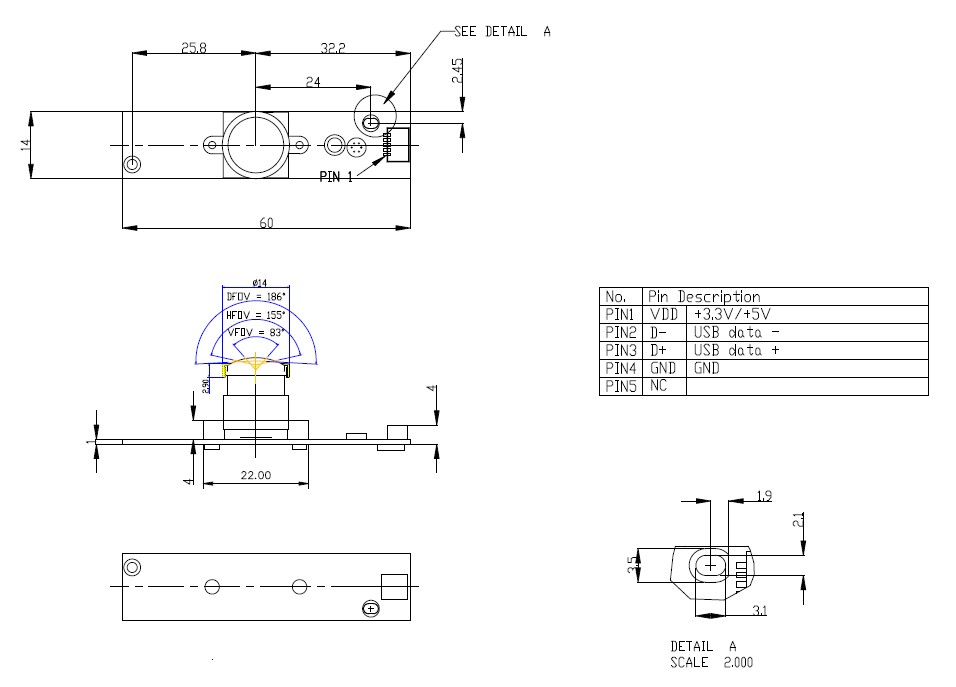

| Dimension (LWH/mm) | 60.0 x 14.0 x 18.12 ±0.2 mm (include PCB Thickness) |
| Power Consumption | +4.75V ~ +5.25V |
| Output Interface | USB2.0 and USB 1.1 Video Class (480Mbit/sec) |
| Operating Temperature | -30℃ to +60℃ |
| Field of View |
154° (Diagonal) 82° (Horizontal) 184° (Vertical) |
| F/No. | 2.0土5% |
| Construction | 6G + IR |
| Focus Range | 80cm |
| ISP Type | ARM Cortex-A7 (Embedded DDR2) |
| Compatibility | USB Video class Compliant, Microsoft WHQL Certified |
| Support Sensor Size | Supports up to 4M (2688x1520) |
| OS Supported | Window10, Linux, Android |
| Video Encoders | H.264 / H.265 / MJPEG |
| Optical format | 1/2.8-inch Full HD CMOS Sensor |
| Active resolution | 1920H×1080V |
| Unit pixel size | 2.9μm x 2.9μm |
| Dynamic Range | HDR Mode up to 100dB & Linear Mode 83dB |
