FHD 1080p AF with Flash LED (SJ5050A12)

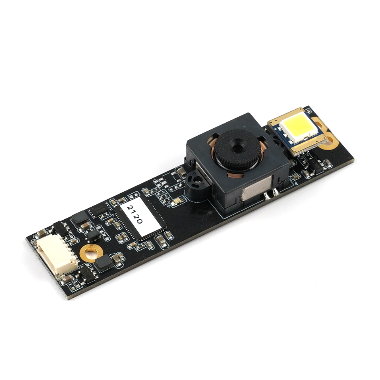

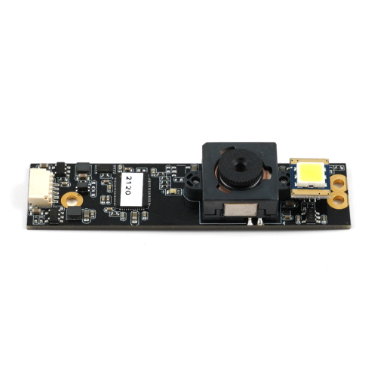

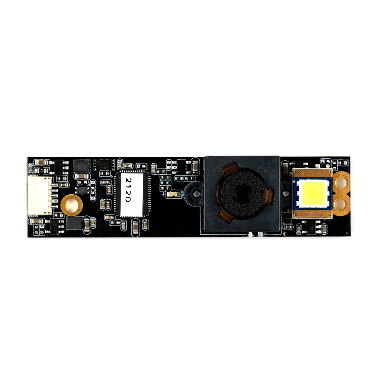

SJ5050A12-S1-AG0 is an USB Video Class (UVC) compliant camera module with video , designed for PC image applications. It is made up of the following components, CMOS sensor, lens, holder, backend, PCB, image processing circuit, and a flash LED. It shall be a reliable device to transfer video data through USB interface to PC. It provides Auto Focus functions.
SJ5050A12-S1-AG0 not only offers up to 5M resolution (2592X1944) for image applications to take still image, but also offers video stream for end user to preview/record motion image through USB 2.0 interface. And It can support VGA (640x480) resolution up to 30 fps at YUY2 mode, 5M resolution up to 30fps at MJPG mode. It also provides one flash LED. It can fill light at the same time when taking pictures.
| Dimension (LWH/mm) | 60.0 x 15.0 x 9.55 mm (include PCB Thickness) |
| Power Consumption | +4.75V ~ +5.25V |
| Output Interface | USB2.0 (480Mbit/sec) & USB1.1 |
| Operating Temperature | 0℃ to +70℃ |
| Field of View | Diagonal: 76.2° |
| Focus Range | 10 cm ~ ∞ |
| Type | Backend IC with USB2.0 interface |
| Compatibility | USB Video class Compliant, Microsoft WHQL Certified |
| Support Sensor Size | Support Most popular CMOS sensors |
| OS Supported | Windows, Mac, Thin-client |
| Optical format | 1/2.7-inch Full HD CMOS Sensor |
| Active resolution | 1920H×1080V |
| Unit pixel size | 3.0μm x 3.0μm |
