4K 2160p with Digital Mic*2 (SB6080D23)【SONY STARVIS】

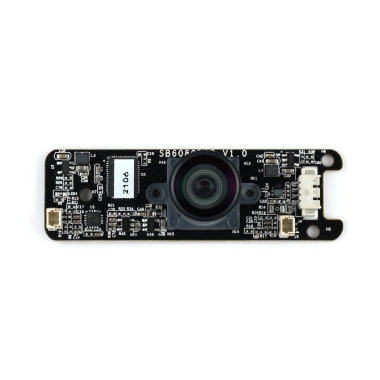

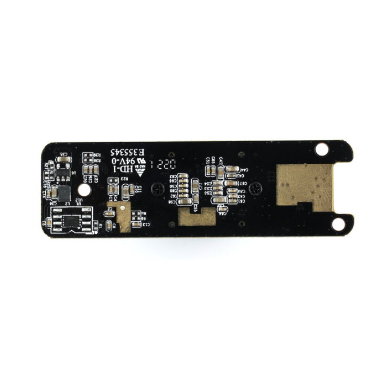

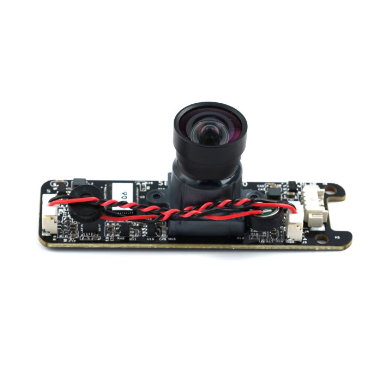

SB6080D23-S2-T60 is an USB Video Class (UVC) and USB Audio Class (UAC) compliant camera module with video and audio feature, designed for PC image applications. It is made up of the following components, CMOS sensor, lens, holder, backend, PCB, image processing circuit, connector and microphone, to come out a digital video and audio device. It shall be a reliable device to transfer video and audio data through USB interface to PC.
SB6080D23-S2-T60 not only offers up to 4K resolution (3840X2160) for image applications to take still image, but also offers video stream for end user to preview/record motion image through USB 2.0 interface. And It can support VGA (640x480) resolution up to 30 fps at YUY2 mode, 4K resolution up to 30fps at MJPG mode. It also provides stereo audio input by two microphones.
| image Sensor | 1/2.8-inch 8.46M CMOS Sensor |
| Active resolution | 3840H×2160V |
| Unit pixel size | 1.45μm x 1.45μm |
| F/No. | 1.7 +/- 5% |
| Field of View | 88.2° (Diagonal) |
| TV Distortion | ＜-0.12% |
| Construction | 4 Glass + 2 Plastic |
| IR Filter | Tavg ≧ 93% @460~635nm |

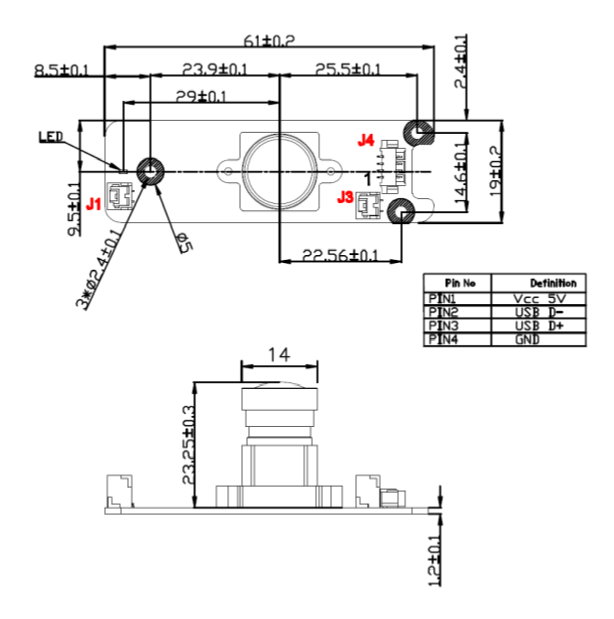

| Size(LWH/mm) | 61.0 x 19.0 x 24.45 mm (include PCB Thickeness) |
| PCB Thickeness | 1.2 mm |
| Output Interface | USB 2.0 |
| Image/Video Format | YUY2 & MJPG |
| Operating Temperature | 0℃ to +70℃ |
| Storage Temperature | -40℃ to +85℃ |
| Power Consumption | 5.0V DC / 260 mA |
| Microphone | Sensitivity -28 (+/-3dB) |
