80 x 62 Uncooled LWIR Thermal Camera (FM8062-V1)
FM8062-V1 Thermal Camera Module has a digital interface and no shutter. The patented fabrication and WLVP packaging ensure low cost of ownership, enabling many new applications to exploit LWIR sensors. It can be difficult to ascertain the “real world” performance of a thermal sensor from its device characteristics.
產品應用

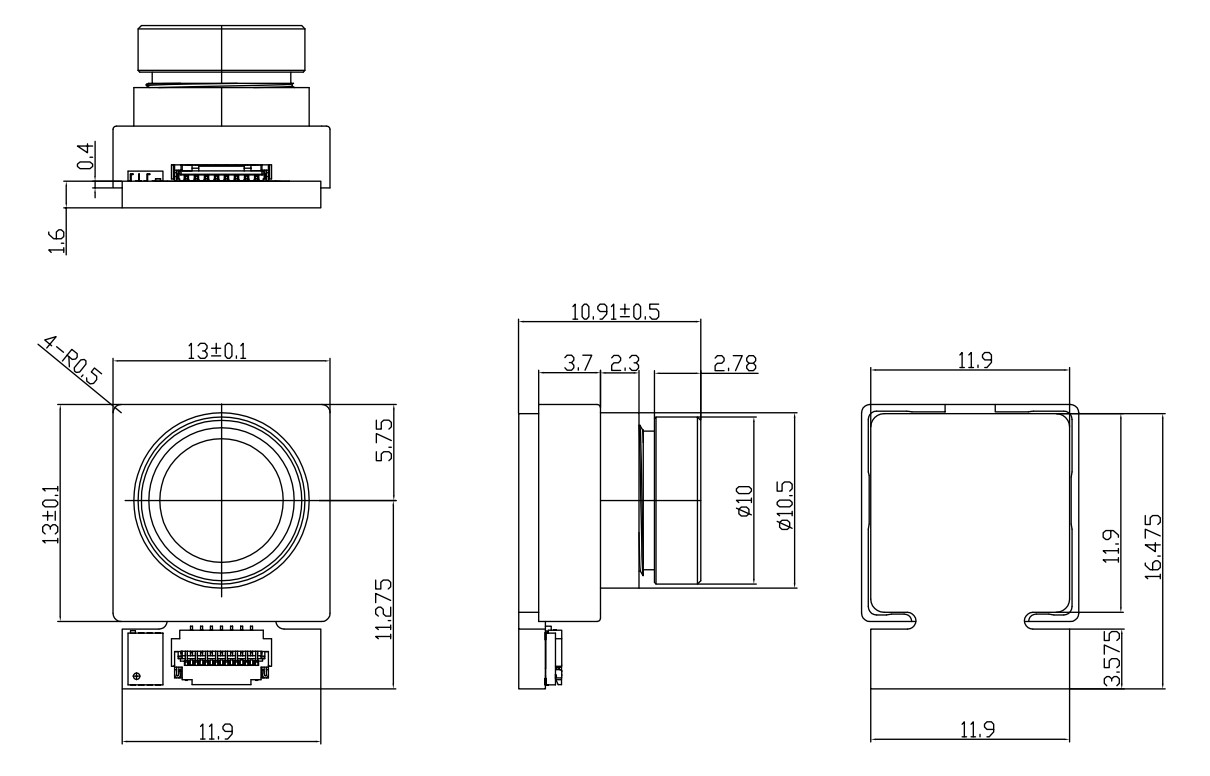

Detector Environmental Interface Mechnical Drawing (without Thermal Image Processor Board) Fangtec Thermal & RGB App source code
| Resolution | 80 (H) x 62 (V) |
| IR Wavelength | 8 - 14μm (Thermal LWIR) |
| Detector pitch | 45μm (H) x 45μm (V) |
| Temperature accuracy | up to +/-1°C |
| Maximum frame rate | 25 FPS |
| NETD (Ge Lens) | 150mk |
| Number of dead detectors | 1% |
| Max scene temperature range | -40°C to 1000°C |
| Operating temperature | -20 ~ 65°C |
| Storage temperature | -40 ~ 85°C |
| Interface | USB2.0 / SPI |
| Power Consumption | ≤ 500mW |
| Power supply | 5.0V |
| Frequency | <1 Hz |
| Camera Module Size | 17.03 x 13 x 10.9mm |
| Processor Board Size | 30 x 30 x mm |
| FOV | 44° x 35 ° (Diagonal 55°) |
