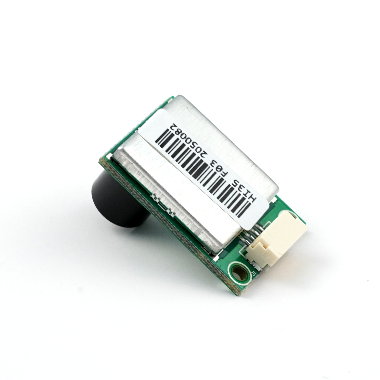

16 x 16 Thermopile Array Module FOV 38° (HI35)
The OTPA-16PV4A-HI35 is a 16x16 thermopile array module having a digital output through I2C interface for ease of infrared image processing.
The applications would be wide such as forehead temperature sensing devices, integration of access control systems, integration of face recognition systems.
OTPA-16PV4A-HI35為一個16x16 熱電堆陣列模組搭載有校正後I2C 的數位輸出介面讓使用者輕鬆做熱影像的處理，適用於額溫感測裝置、門禁系統整合、人臉辨識系統整合等應用。
產品應用
| Operating Voltage |
Minimum: 4.5V Typical: 5.0V Maximum: 5.5V |
| Operating Current | 8.0mA |
| Interface | I2C |
| Interface Speed | 100KHz |

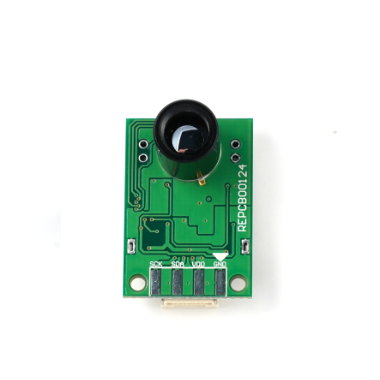

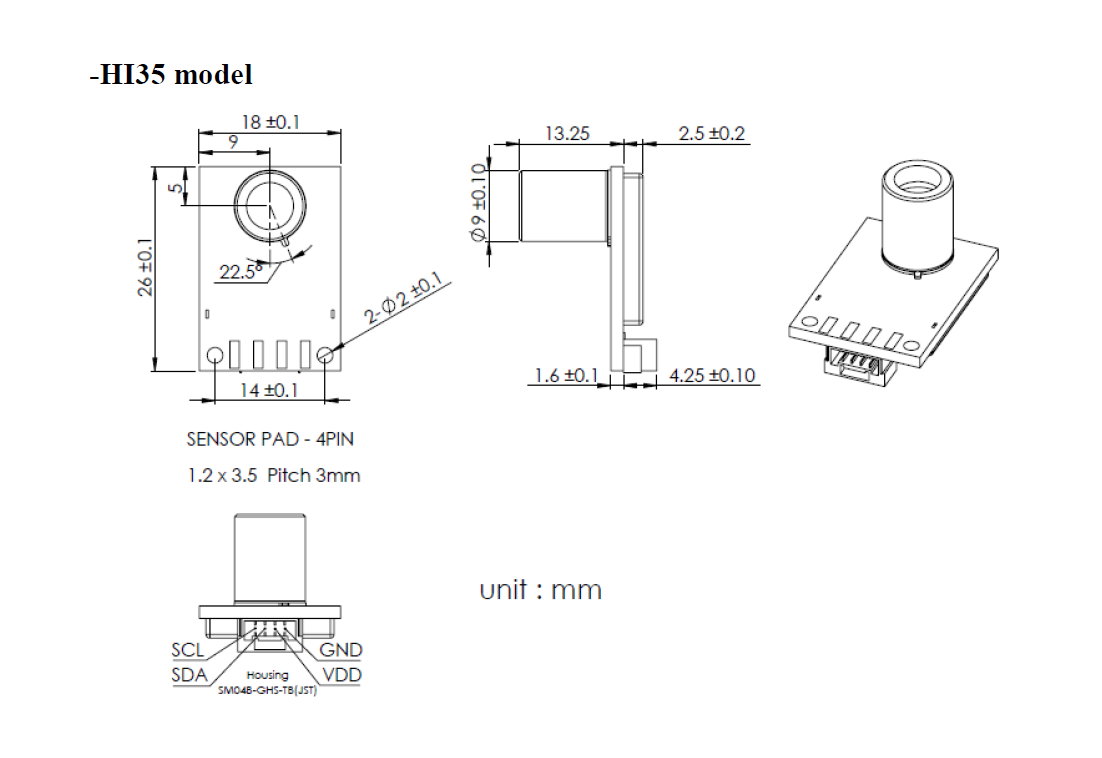

| Physical Connection Interface | SM04B-GHS-TB(JST) connector |
| Effective Number of Pixels | 256 Pixels |
| NETD | Typical: 0.4℃ |
| Frame Rate | Maximum: 980ms |
| Field of View |
Horizontal: 38 Degrees Vertical: 38 Degrees |
| Resolution of Reading | Typical: 0.05℃ |
| Object Temperature Accuracy | ±0.3 ~ ±0.4℃ |
