FHD 1080p 60fps with A-Mic*2 (SJ6020D32)

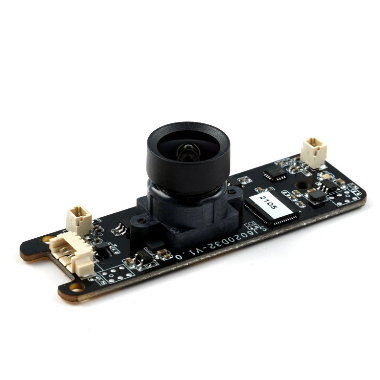

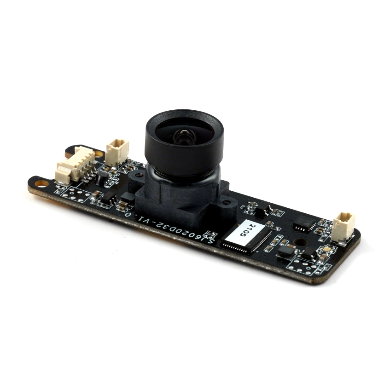

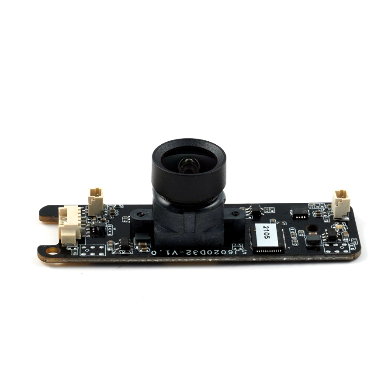

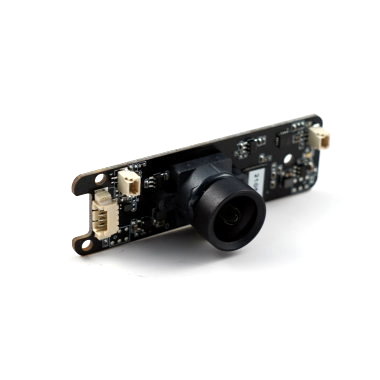

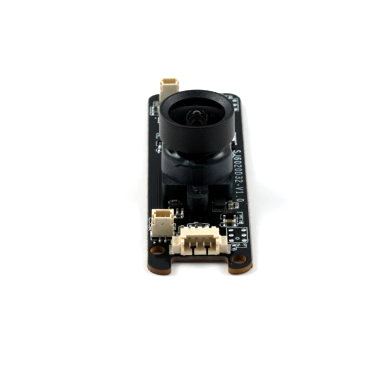

SJ6020D32-S1-T20 is an USB Video Class (UVC) and USB Audio Class (UAC) compliant camera module with video and audio feature, designed for PC image applications. It is made up of the following components, CMOS sensor, lens, holder, backend, PCB, image processing circuit, connector and microphone, to come out a digital video and audio device. It shall be a reliable device to transfer video and audio data through USB interface to PC.
SJ6020D32-S1-T20 not only offers up to FHD resolution (1920X1080) for image applications to take still image, but also offers video stream for end user to preview/record motion image through USB 2.0 interface. And It can support VGA (640x480) resolution up to 30 fps at YUY2 mode, FHD resolution up to 60fps at MJPG mode. It also provides stereo audio input by two microphones.
SJ6020D32-S1-T20 builds in AE, AWB and AGC for automatic image control supported by CMOS sensor. For image quality control, it also offers UVC standardized User Interface (UI) to let end user well tune image by property page.
| Size(LWH/mm) | 61.0 x 19.0 x 17.45 mm (include PCB thickness) |
| PCB Thickeness | 1.2 mm |
| Output Interface | USB 2.0 |
| Image/Video Format | YUY2 & MJPG |
| Output size | 1920x1080 |
| Video Class Compliant | YES |
| Operating Temperature | 0℃ to +70℃ |
| Power Consumption | 5.0V DC / 210 mA |
| Optical format | 1/2.7-inch Full HD CMOS Sensor |
| Active resolution | 1920H×1080V |
| Unit pixel size | 3.0μm x 3.0μm |
| F/No. | 2.2土5% |
| Field of View | 95.8° (Diagonal) |
| TV Distortion | ＜0.6% |
| Construction | 1 Glass+ 4 Plastic |
| IR Filter | Tavg ≧ 92% @440~630nm |
