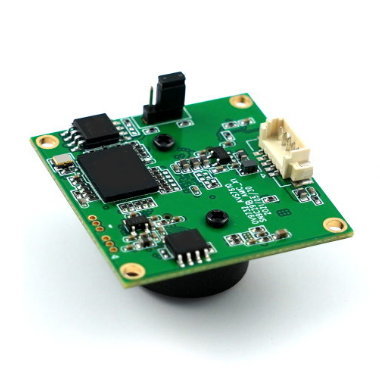

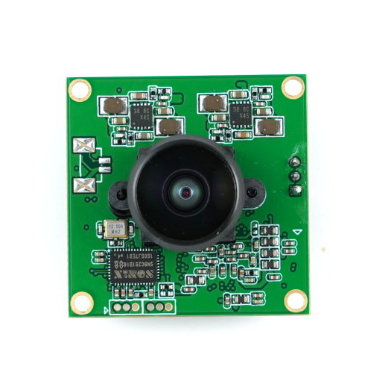

HD 720p with fisheye lens correction & Vertical image (SV3410B11)
As shown above, the original video was shot with a round fisheye lens. Performance processed by correcton ISP.
產品應用
| image Sensor | Omnivision 1/4" (OV9732) |
| Resolution | 1280x720 |
| Frame Rate | 30FPS |
| Pixel Size | 3um x 3um |
| Operating Temperature | -30°C~ 70°C |

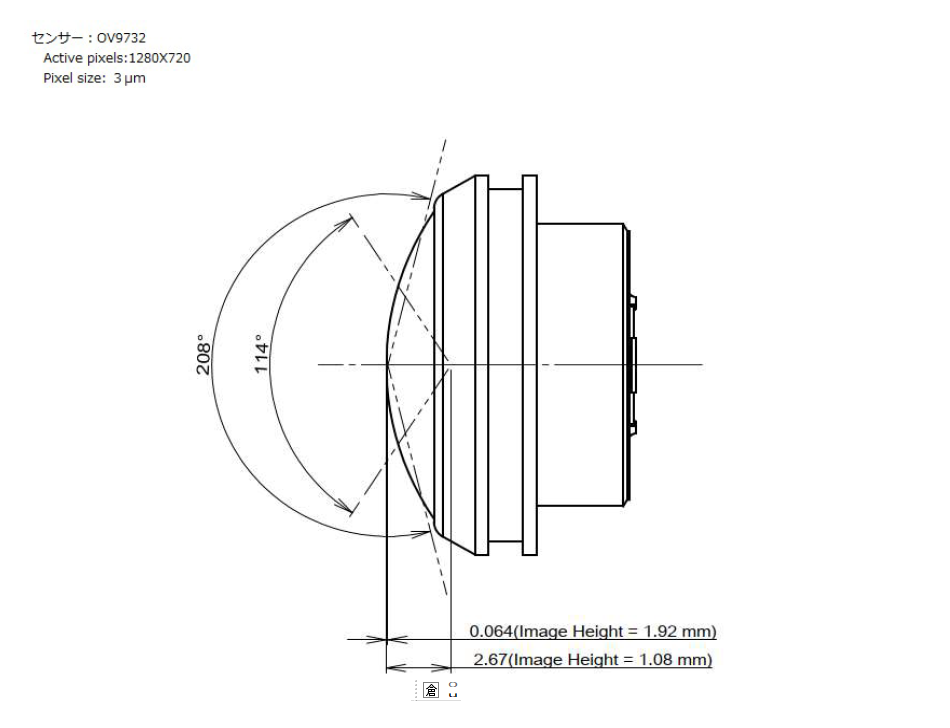

| FOV (Horizontal / Vertical) OP | 180° / 114° |
| ISP | AVS7610 |
| Fisheye lens Correction | AVS7610 |
| Input Resolution | 1280x720 |
| Output Resolution | 1280x720 |
| Max. Frame Rate | 30fps |
| DSP | SPCA2791A |
| Image Format | MJPEG, YUV, H.264 |
| Interface | USB2.0 |
| Power | 300mA @5V |
