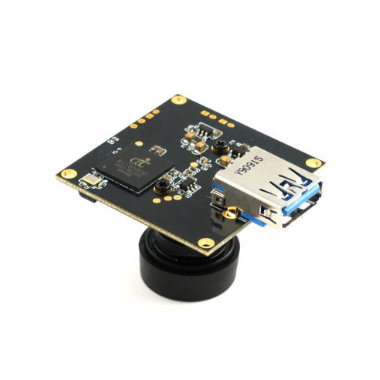

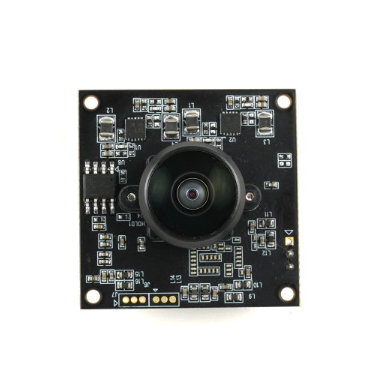

4K 2160p Support H.264 USB3.0 (CY-3080)
CY-3080-A01 not only offers up to 4K resolution (3840X2160) for image applications to take still image, but also offers video stream for end user to preview/record motion image through USB 3.0 interface.
CY-3080-A01 can support UHD (3840x2160) resolution up to 30 fps at MJPG and H.264 mode,
產品應用
| Size(LWH/mm) | 38.0 x 38.0 x 22.63 +/-0.2mm (include PCB Thickeness) |
| Output interface | USB3.0 |
| Image / Video Format | MJPG & H.264 |
| Operating Temperature | -10 to +65°C |
| Optical format | IMX317 1/2.5-inch 8.51M CMOS Sensor |
| Active resolution | 3840H x 2160V |
| Unit pixel size | 1.62 µm (H) x 1.62 µm (V) |
| F/No. | 2.2 +/-5% |
| Field of view | 120°(Diagonal) 112(H) 75(V) |
| Focus Distance | 50cm |
| Distortion | No distortion processing |
