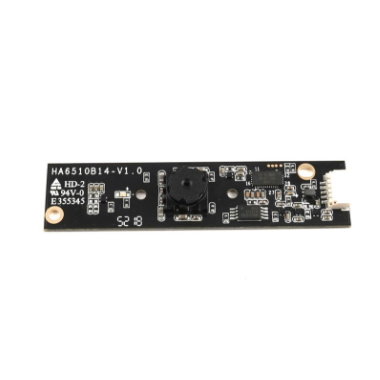

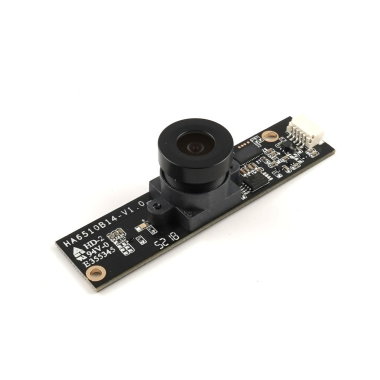

Global Shutter Camera; Fixed Focus
SO3210B not only offers up to 1280 X 800 resolution for image applications to take still image, but also offers video stream for end user to preview/record motion image through USB 2.0 interface.
SO3210B can support 1280 x 800 resolution up to 120fps at MJPG mode.
S03210B incorporates the global shutter pixel design optimized for accurate and fast capture of moving scenes.
產品應用

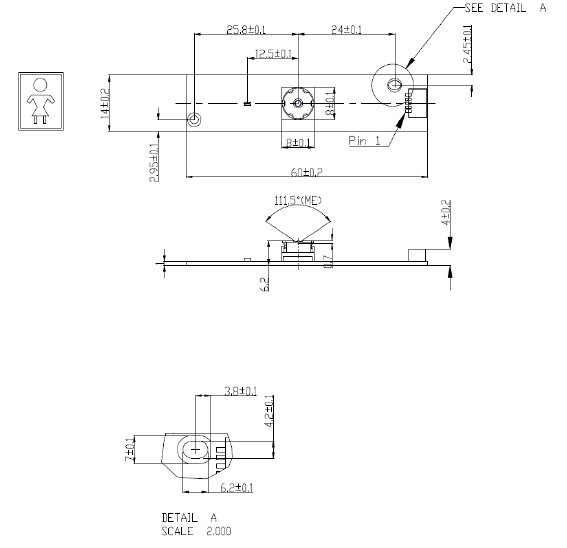

| Dimension (LWH/mm) | 60.0 x 14.0 x 6.2±0.2 mm (including PCB Thickness) |
| Output Interface | USB2.0 (480Mbit/sec) & USB1.1 |
| Power Consumption | +5V |
| Operating Temperature | 0℃ to +55℃ |
| Field of View | Diagonal: 103° |
| OS Support | Win7, Win8, Win8.1, Win10, Linux, Android, Open CV |
| Compatibility | SPCA2089D USB 2.0 Video Class Compliant, Microsoft WHQL Certified |
| Image Sensor | OV9281 1/4" 1M B&W CMOS Sensor with Global Shutter |
| Active Pixels | 1280(H) x 800(V) |
