Barcode Camera Reader; Fixed Focus; Red Laser Light; Buzzer (AV5350B22)

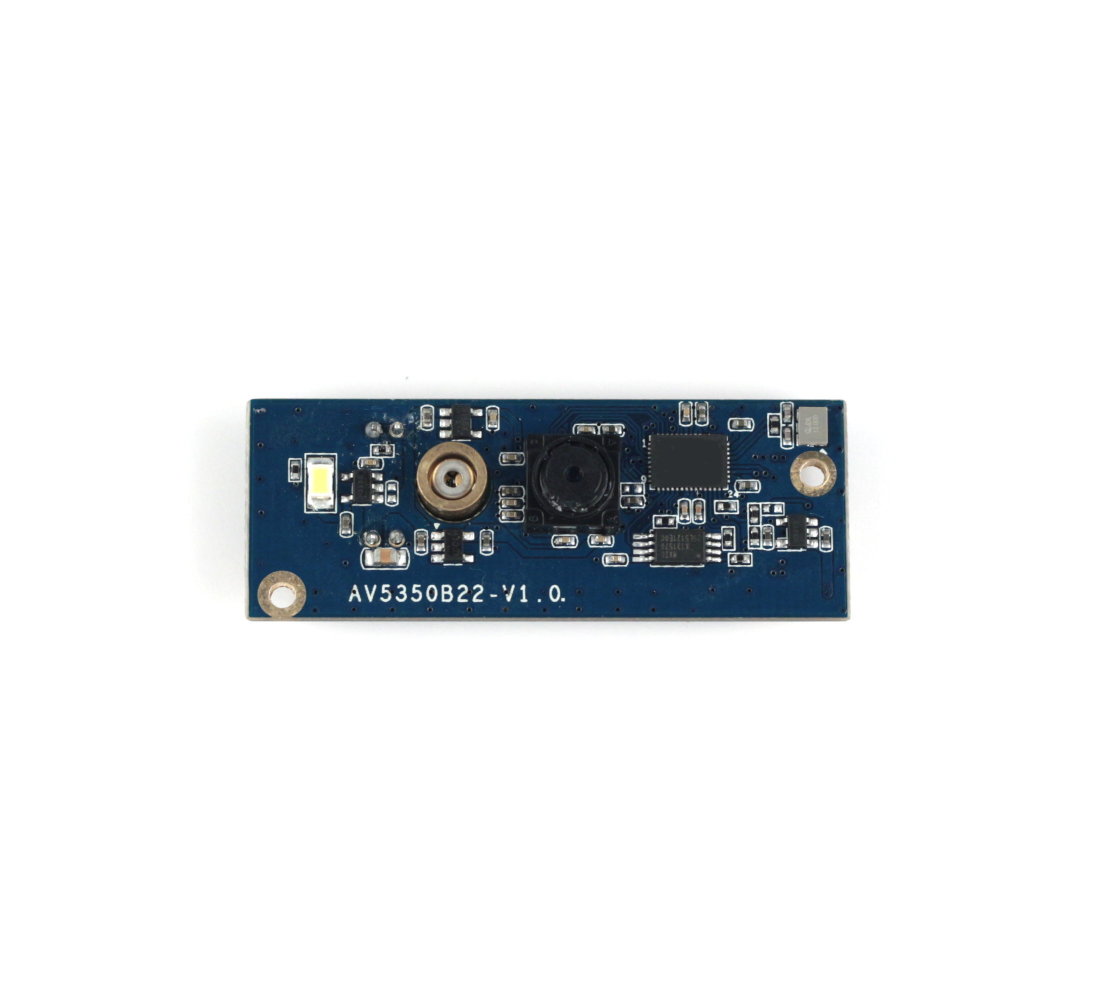

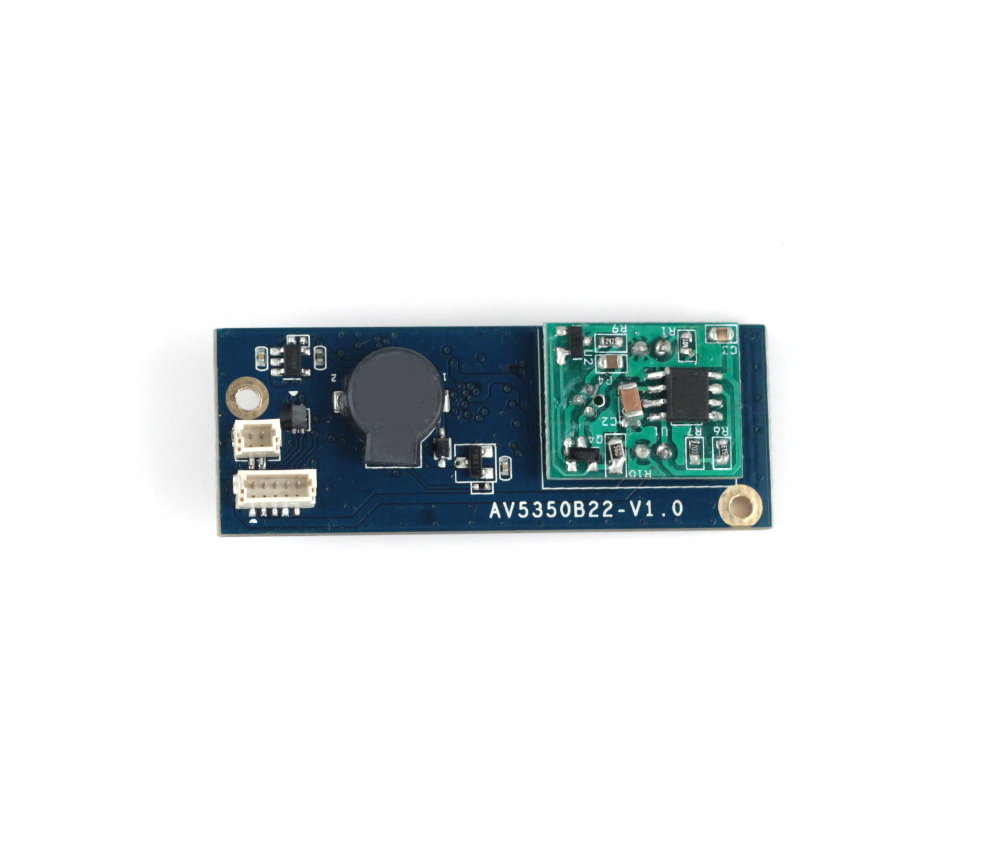

AV5350B22-SV-4L0 is an USB Video Class (UVC) compliant camera module designed for portable notebook PC image applications. It is a highly integrated system that provides a cost-effective and performance solution for video capture application. It shall be a reliable device that is embedded in POS and Kiosk to transfer video data through USB interface to POS and Kiosk.
*Laser Light (Red) as barcode targeting zone
*Buzzer function
*Support 720P/1080P framerate up to 30fps
*Support still image resolution: 2592(H) x 1944(V)
產品應用

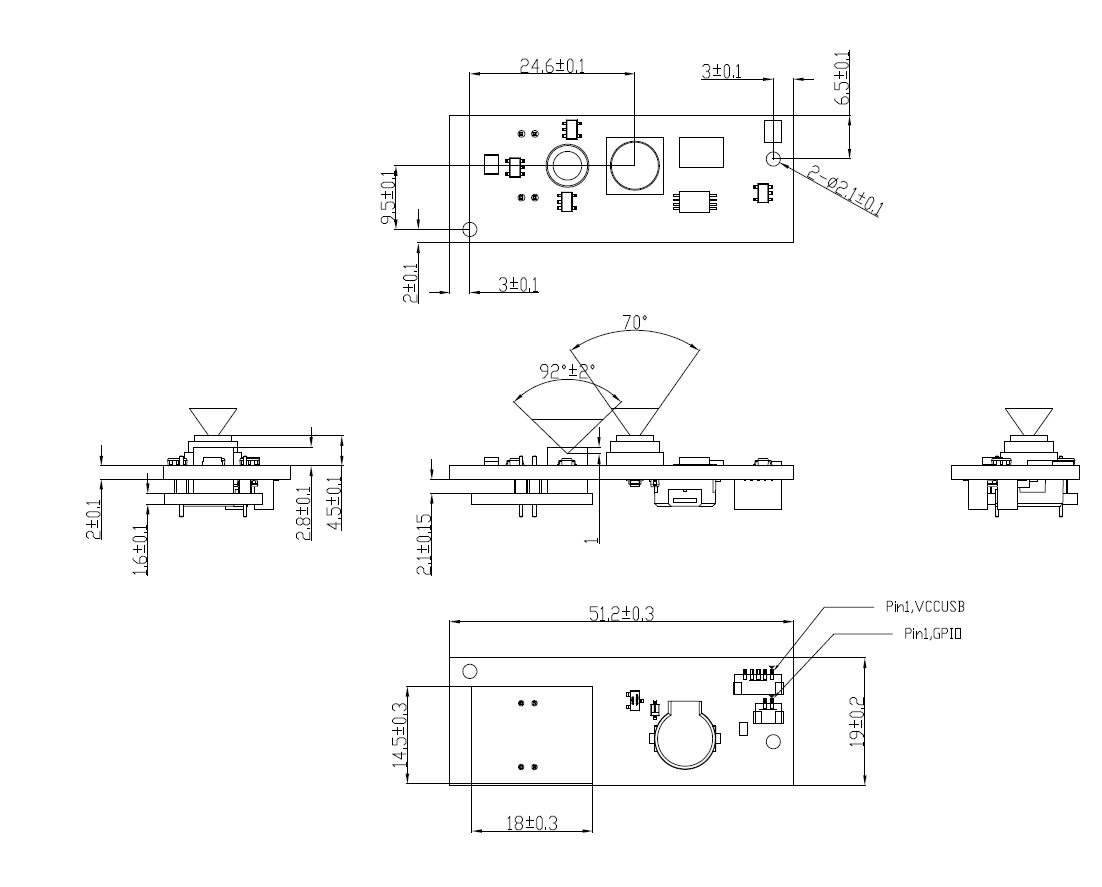

| Dimension (LHW/mm) | 51.2 x 18.99 x 7.55±0.2 mm (including PCB Thickness) |
| Power Consumption | +3.15V ~ +5.25V |
| Output Interface | USB2.0 (480Mbit/sec) & USB1.1 |
| Operating Temperature | 0℃ to +55℃ |
| Field of View | Diagonal: 70° |
| OS Support | Win7, Win8, Win8.1, Win10, Linux, Android, OPOS |
| Compatibility | USB 2.0 Video Class Compliant, Microsoft WHQL Certified |
| Image Sensor | 1/4" CMOS Sensor |
| Active Pixels | 2592(H) x 1944(V) |
