Dual Camera_IR & RGB _FHD (DCEA23)
DCEA23-S2-TC0 is an USB Video Class(UVC) compliant camera module designed for face recognition and live detection.
Detection range can be up to 5m by enhancing higher efficiency of IR LEDs and by replacing with different lens providing different field of view.

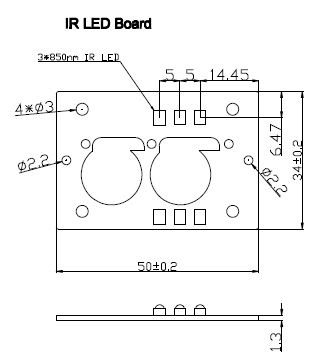

*DECA23-S2-TC0 (with 6 IR LEDs) can detect roughly to 1m.
產品應用

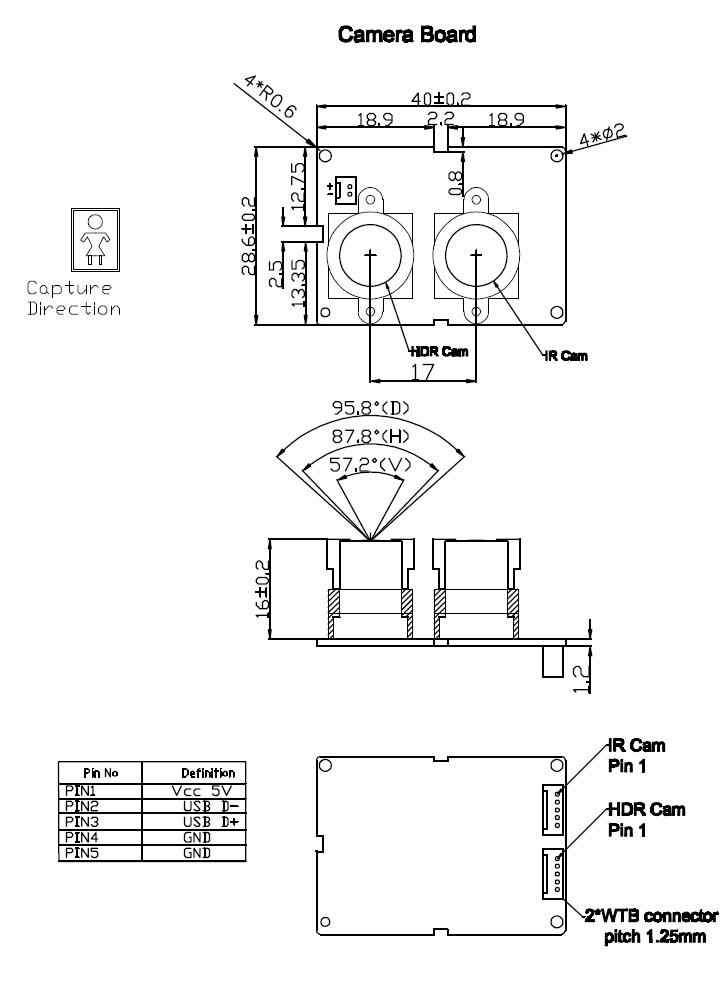

| Dimension (LW/mm) | 40.0mm x 28.6mm |
| IR Camera |
Image/Video Format: YUY2, MJPG Field of View Diagonal: 86° Vertical: 49° Horizontal: 78° IR Filter: Tavg≧90%; 850±10nm |
| RGB Camera |
Image/Video Format: YUY2, MJPG Field of View Diagonal: 95.8° Vertical: 58.2° Horizontal: 87.8° IR Filter : Tavg≧97% 440~635 nm |
| Output Interface | USB2.0 (480Mbit/sec) & USB1.1 |
| Power Consumption |
IR Camera: +5V RGB Camera: +5V |
| Operating Temperature | -30℃ to +70℃ |
| OS Support | Win7, Win8, Win8.1, Win10, Linux, Android |
| Compatibility | USB 2.0 Video Class Compliant, Microsoft WHQL Certified |
| Image Sensor |
IR Camera: 1/2.7" CMOS Sensor RGB Camera: 1/2.7” CMOS Sensor |
| Active Pixels |
IR Camera: 1920(H) x 1080(V) RGB Camera: 1920(H) x 1080(V) |
