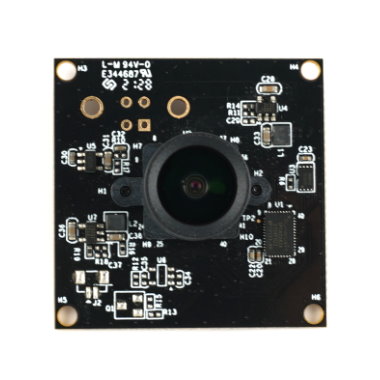

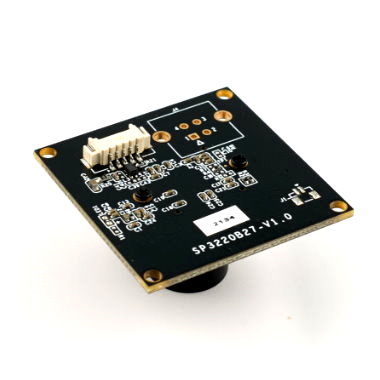

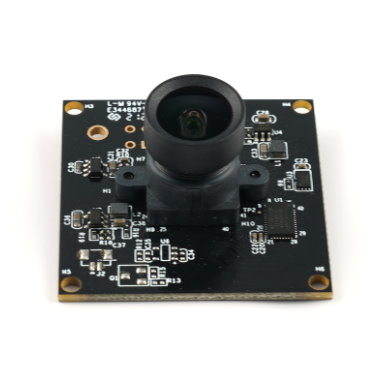

HDR 1080P Camera; Fixed Focus (SP3220B)
SP3220B not only offers up to Full HD resolution (1920X1080) for image applications to take still image, but also offers video stream for end user to preview/record motion image through USB 2.0 interface.
SP3220B can support VGA (300K, 640x480) resolution up to 30 fps at YUY2 mode, 1080P resolution (1920x1080) up to 30fps at MJPG mode.
*Note: HDR scheme used is multi−exposure HDR. This allows the sensor to handle up to 96dB of dynamic range. In HDR mode, the sensor sequentially captures two exposures by maintaining two separate read and reset pointers that are interleaved within the rolling shutter readout.
產品應用

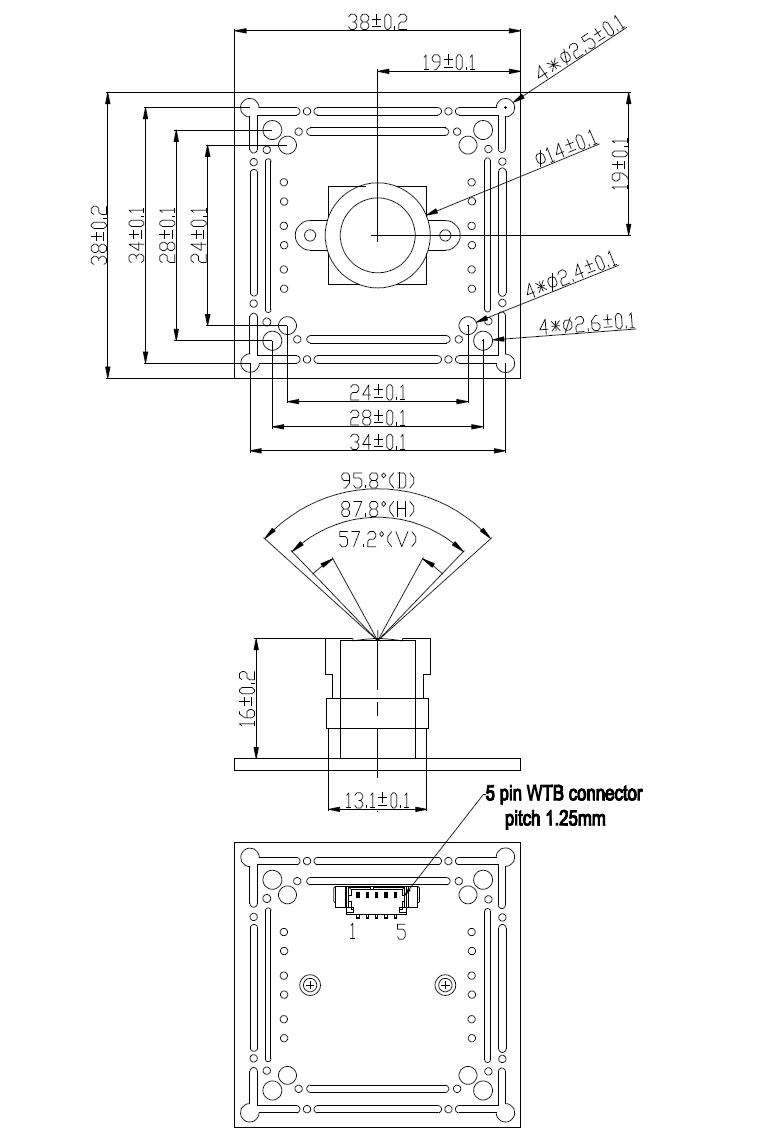

| Dimension (LWH/mm) | 38.0 x 38.0 x 17.6±0.2 mm (including PCB Thickness) |
| Output Interface | USB2.0 (480Mbit/sec) & USB1.1 |
| Power Consumption | +5V |
| Operating Temperature | -30℃ to +70℃ |
| Field of View |
Diagonal: 95.8° Vertical: 57.2° Horizontal: 87.8° |
| OS Support | Win7, Win8, Win8.1, Win10, Linux, Android |
| Compatibility | USB 2.0 Video Class Compliant, Microsoft WHQL Certified |
| Image Sensor | 1/2.7" CMOS Sensor |
| Active Pixels | 1920(H) x 1080(V) |
