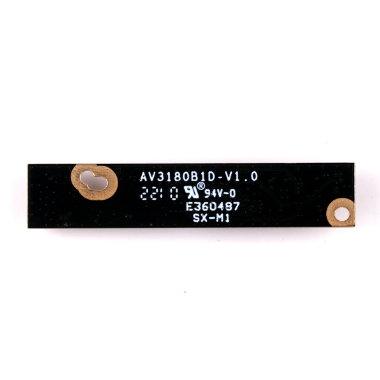

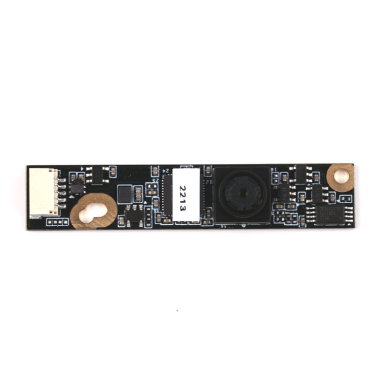

8MP Fixed Focus (AV3180B1D)
AV3180B1D not only offers up to 8M resolution (3264X2448) for image applications to take still image, but also offers video stream for end user to preview/record motion image through USB 2.0 interface.
AV3180B1D can support VGA (300K, 640x480) resolution up to 30 fps at YUY2 mode, 1920x1080 resolution up to 25fps at MJPG mode.
產品應用

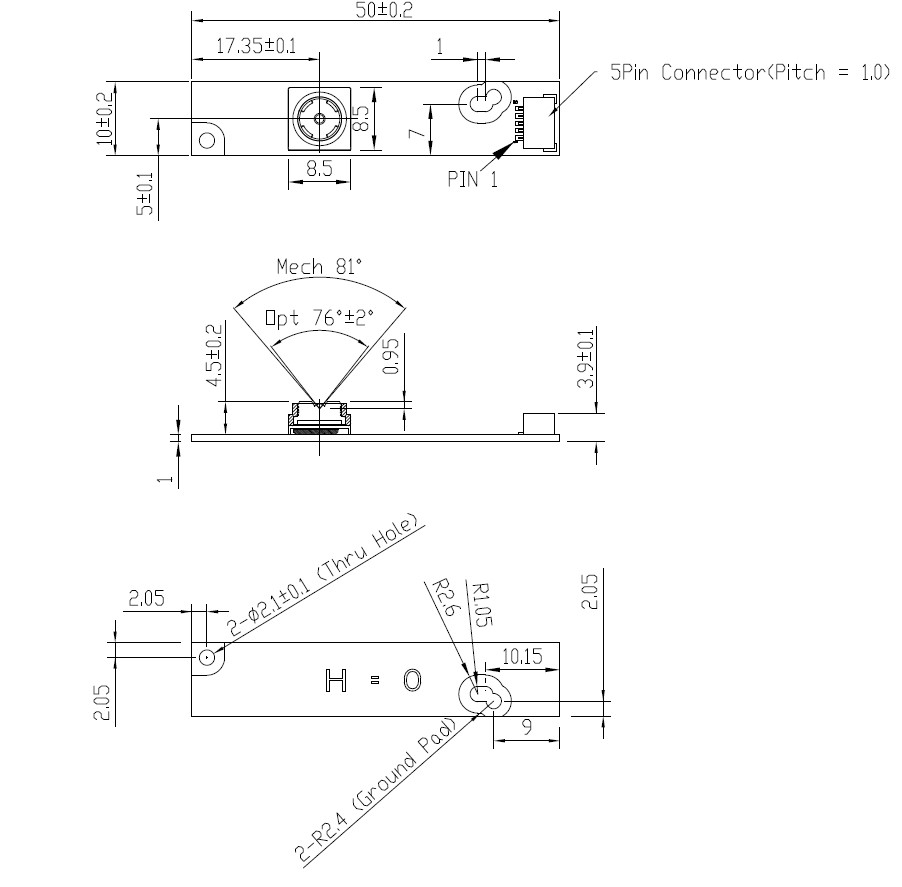

| Dimension (LWH/mm) | 50.0 x 10.0 x 5.5±0.2 mm (including PCB Thickness) |
| Power Consumption | +5.15V ~ +5.15V |
| Output Interface | USB2.0 (480Mbit/sec) & USB1.1 |
| Operating Temperature | 0℃ to +55℃ |
| Field of View |
Diagonal: 76° Vertical: Horizontal: |
| OS Support | Win7, Win8, Win8.1, Win10, Linux, Android |
| Compatibility | USB 2.0 Video Class Compliant, Microsoft WHQL Certified |
| Image Sensor | 1/4" CMOS Sensor |
| Active Pixels | 3264(H) x 2448(V) |
