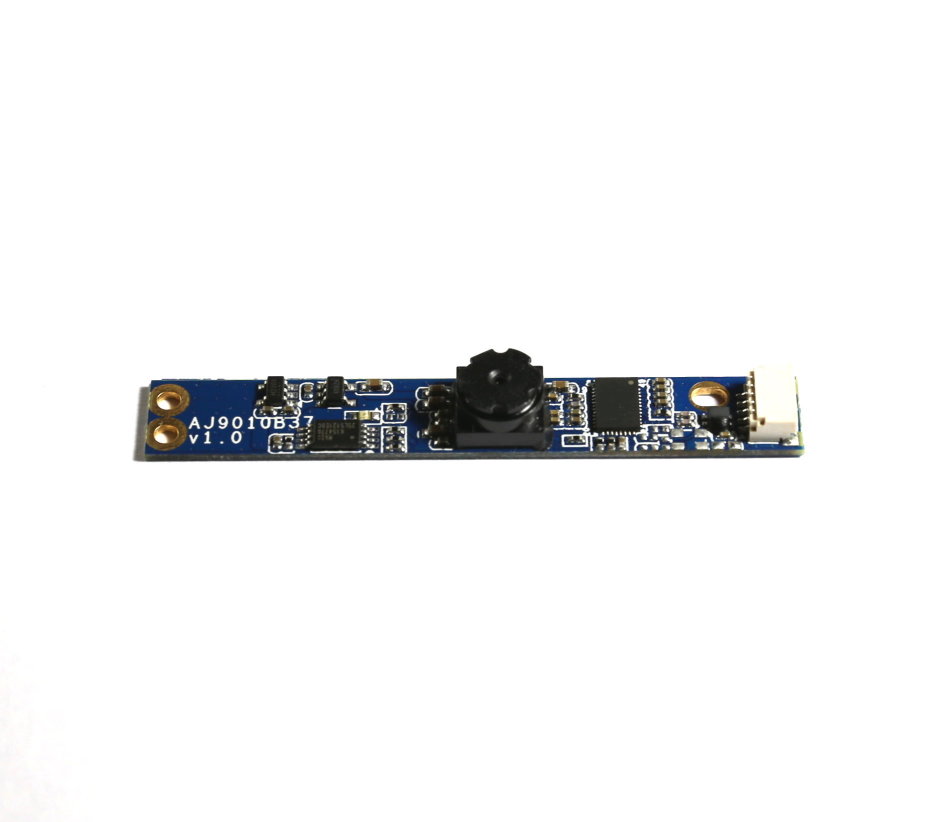

HD 720P_ Wide Angle Fixed Focus (AJ9010B37)
AJ9010B37-S1-4M0 not only offers up to HD resolution (1280X720) for image applications to take still image, but also offers video stream for end user to preview/record motion image through USB 2.0 interface.
AJ9010B37-S1-4M0 can support VGA (300K, 640x480) resolution up to 30 fps at YUY2 mode, 720P resolution (1280x720) up to 30fps at MJPG mode.
產品應用

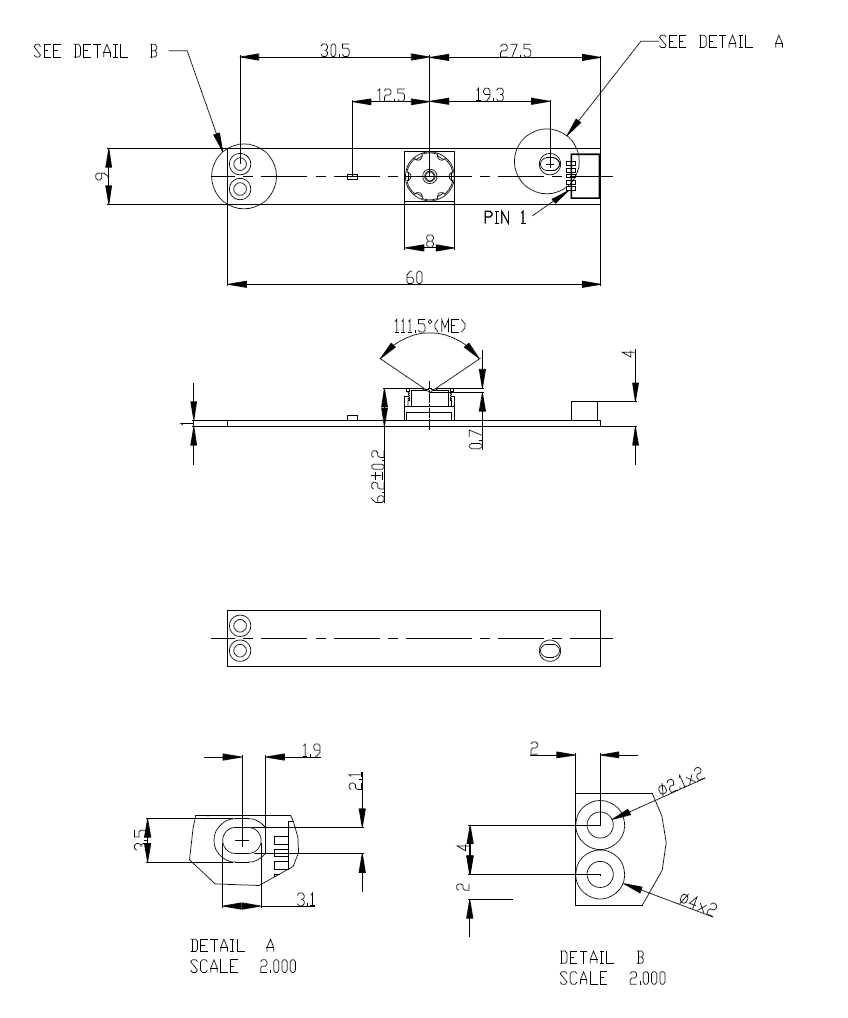

| Dimension (LWH/mm) | 60.0 x 9.0 x 6.2±0.2 mm (including PCB Thickness) |
| Output Interface | USB2.0 (480Mbit/sec) & USB1.1 |
| Power Consumption | +3.15V ~ +5.25V |
| Operating Temperature | 0℃ to +55℃ |
| Field of View |
Diagonal: 98° Vertical: 51° Horizontal: 85° |
| OS Support | Win7, Win8, Win8.1, Win10, Linux, Android |
| Compatibility | USB 2.0 Video Class Compliant, Microsoft WHQL Certified |
| Image Sensor | 1/4" HD CMOS Sensor |
| Active Pixels | 1280(H) x 720(V) |
