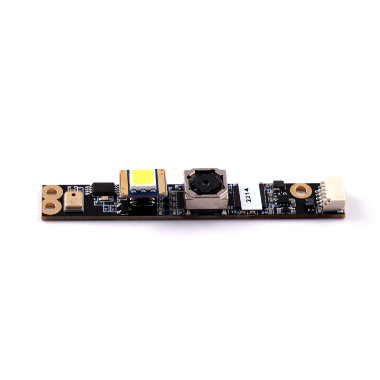

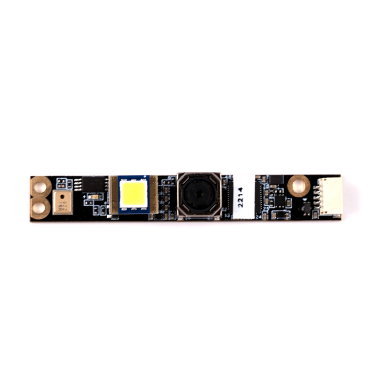

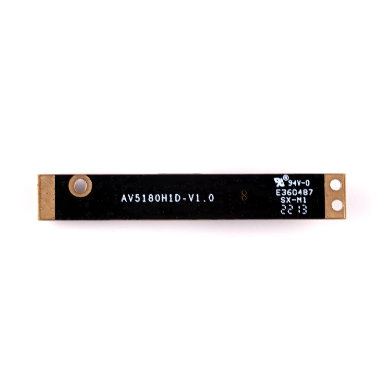

8MP Auto Focus | Upright LED Flashlight | Digital Mic*1 (AV5180H1D)
AV5180H1D is an USB Video Class(UVC) compliant camera module designed for portable notebook PC image applications. It is a highly integrated system that provides a cost-effective and performance solution for video capture application. It shall be a reliable device that is embedded in notebook PC to transfer video data through USB interface to notebook PC.
AV5180H1D provides Auto Focus and LED flashlight functions or Digital Microphone opation.
產品應用
| Dimension (LWH/mm) | 60.0 x 9.0 x 7.25±0.2 mm (including PCB Thickness) |
| Power Consumption | +4.85V ~ +5.15V |
| Output Interface | USB2.0 (480Mbit/sec) & USB1.1 |
| Operating Temperature | 0℃ to +50℃ |
| Field of View |
Diagonal: 75° Focus Range 10cm ~ ∞ |
| OS Support | Win7, Win8, Win8.1, Win10, Linux, Android |
| Compatibility |
USB 2.0 Video Class Compliant, Microsoft WHQL Certified USB 2.0 Audio Class Compliant, Microsoft WHQL Certified |
| Image Sensor | 1/4" CMOS Sensor |
| Active Pixels | 3264(H) x 2448(V) |
