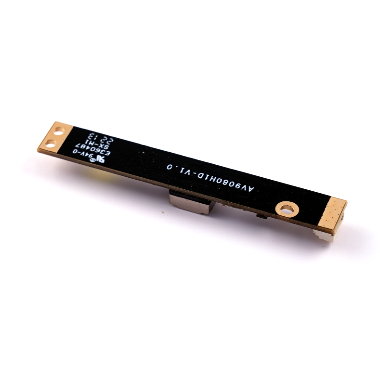

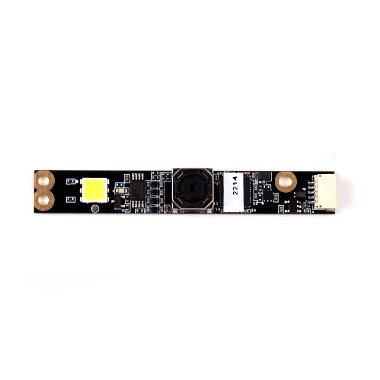

8MP Auto Focus | LED Flashlight (AV9080A1D)
AV9080A1D not only offers up to 8M resolution (3264X2448) for image applications to take still image, but also offers video stream for end user to preview/record motion image through USB 2.0 interface.
AV9080A1D can support VGA (300K, 640x480) resolution up to 30 fps at YUY2 mode, 1920x1080 resolution up to 25fps at MJPG mode.
AV9080A1D also provides Auto Focus functions and 1W LED flashlight functions
產品應用

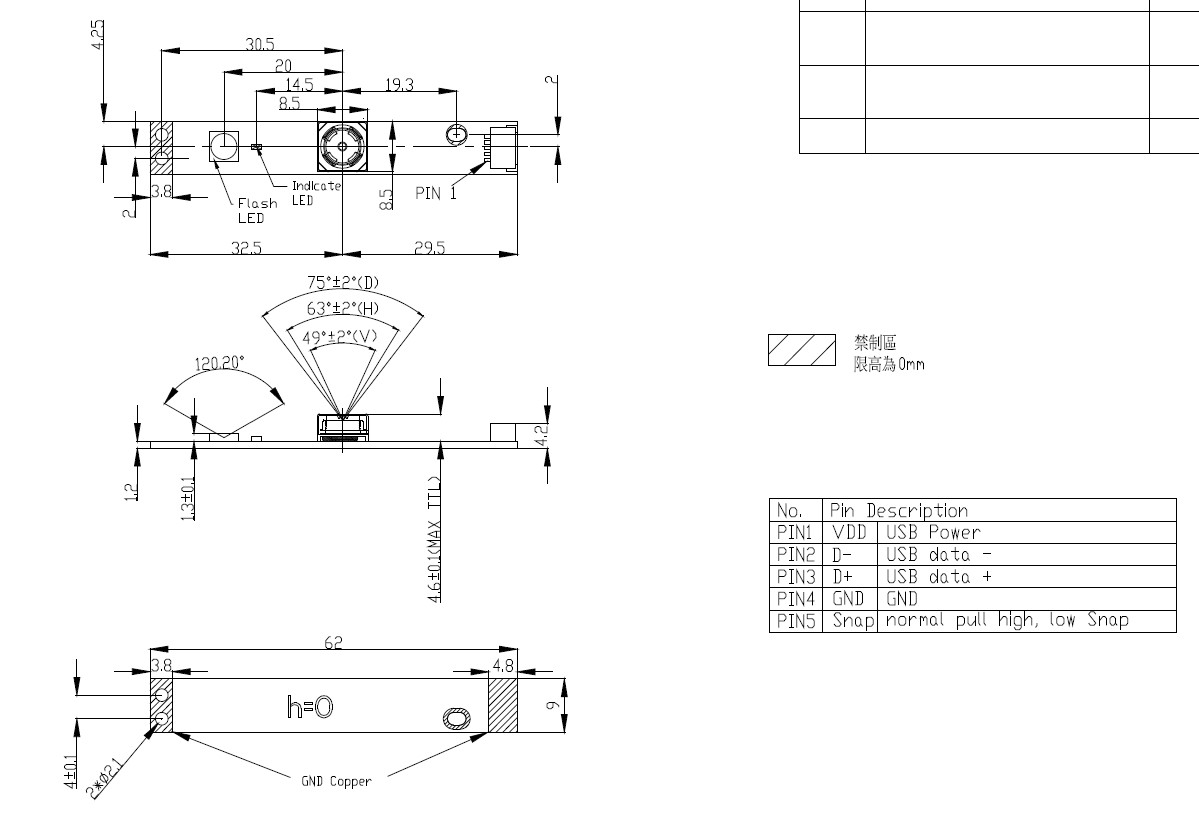

| Dimension (LWH/mm) | 62.0 x 9.0 x 5.8±0.2 mm (including PCB Thickness) |
| Power Consumption | +5V |
| Output Interface | USB2.0 (480Mbit/sec) & USB1.1 |
| Operating Temperature | 0℃ to +55℃ |
| Field of View | Diagonal: 75° |
| OS Support | Win7, Win8, Win8.1, Win10, Linux, Android |
| Compatibility |
USB 2.0 Video Class Compliant, Microsoft WHQL Certified |
| Image Sensor | 1/4.0" CMOS Sensor |
| Active Pixels | 3264(H) × 2448(V) |
