2MP Fixed Focus (AG5020B27) 2D人臉辨識防偽專用

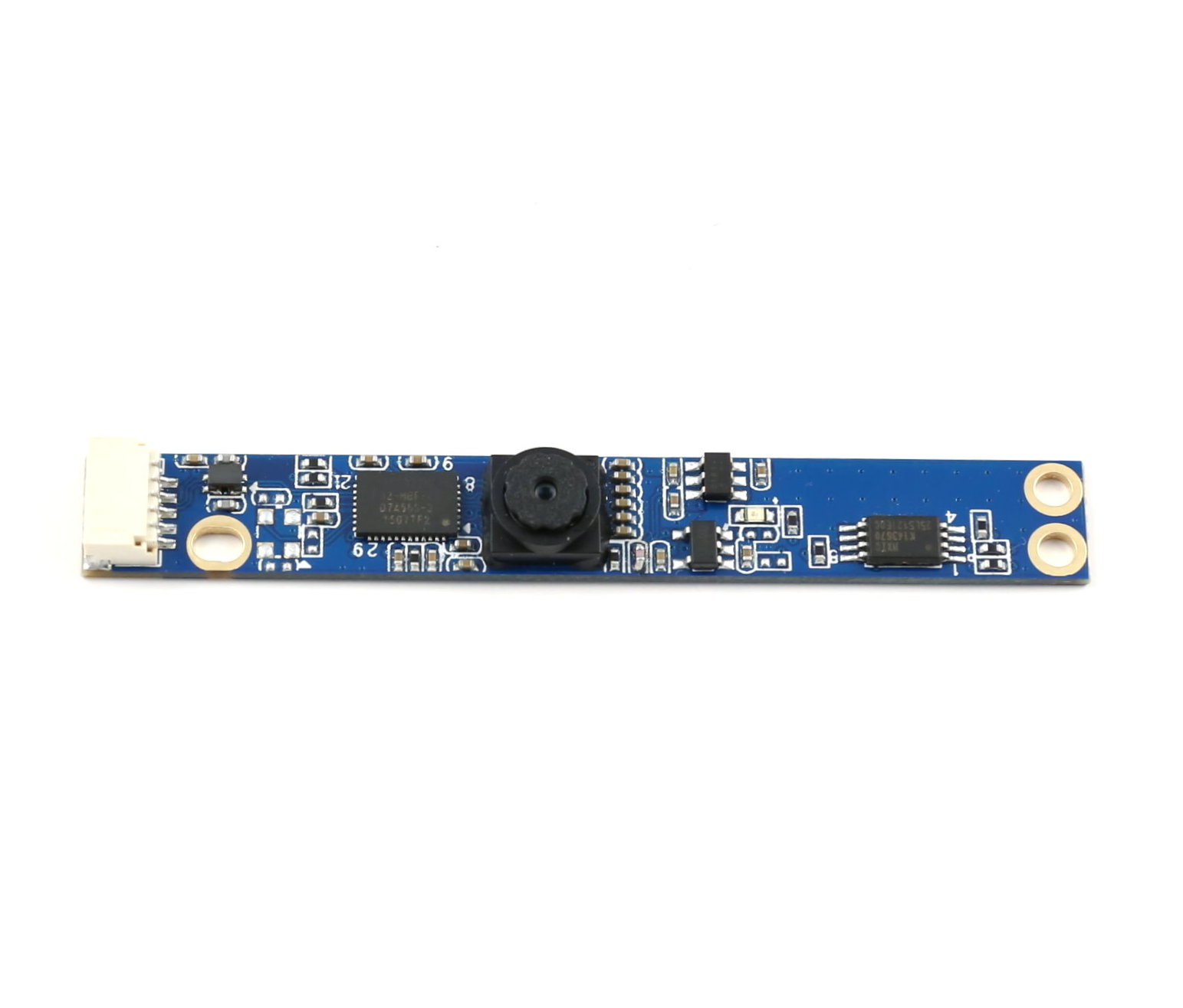

AG5020B27-S1-3R0 is an USB Video Class(UVC) compliant camera module with video feature, designed for portable notebook PC image applications. It is made up of the following components, CMOS sensor, lens, holder, backend, PCB, image processing circuit and connector, to come out a digital video device. It shall be a reliable device which is embedded in notebook PC to transfer video data through USB interface to notebook PC.
產品應用

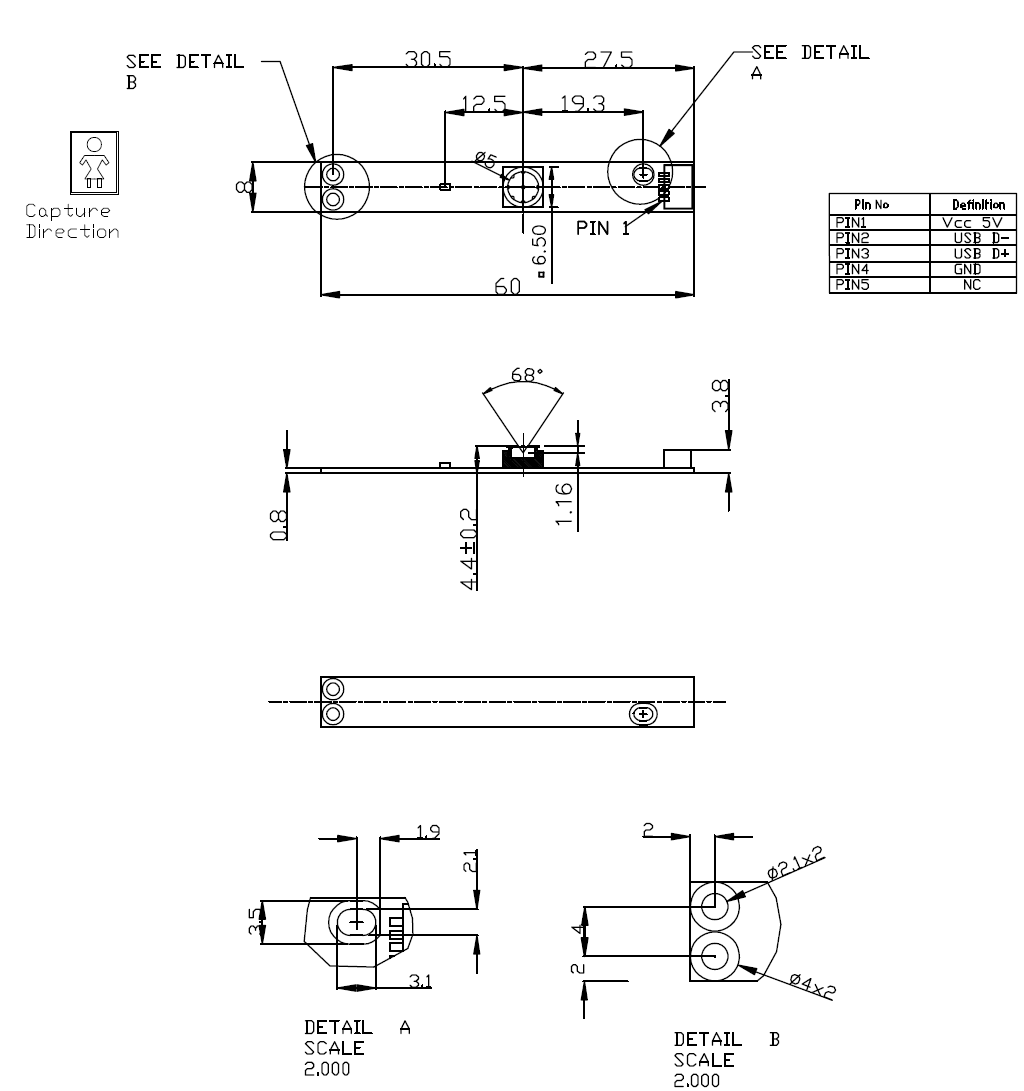

| Dimension (LWH/mm) | 60.0 x 8.0 x 4.4±0.2 mm (including PCB Thickness) |
| Power Consumption | +3.15V ~ +5.25V |
| Output Interface | USB2.0 (480Mbit/sec) & USB1.1 |
| Operating Temperature | 0℃ to +55℃ |
| Field of View |
Diagonal: 68° Vertical: 44.7° Horizontal: 57.5° |
| OS Support | Win7, Win8, Win8.1, Win10, Linux, Android |
| Compatibility | USB 2.0 Video Class Compliant, Microsoft WHQL Certified |
| Image Sensor | 1/5" CMOS Sensor |
| Active Pixels | 1600(H) x 1200(V) |
