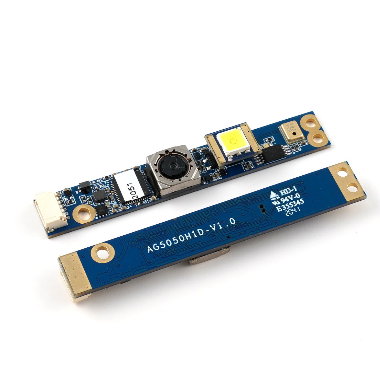

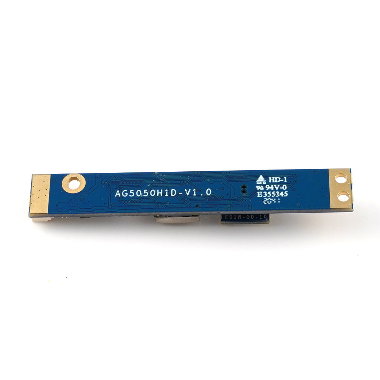

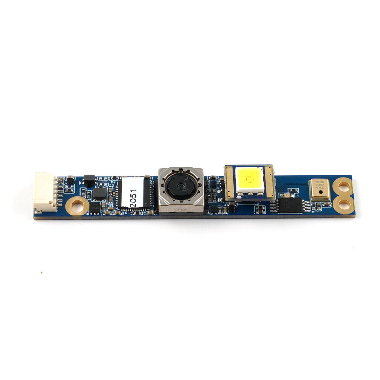

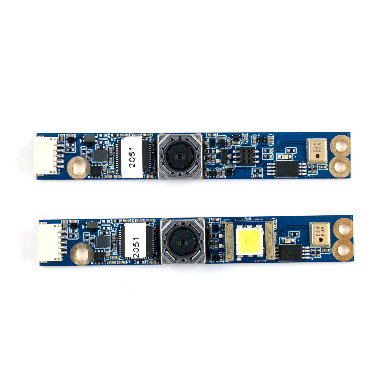

5MP Auto Focus | Upright LED Flashlight | Digital Mic*1 (AG5050H1D)
AG5050H1D-SJ-AB0 is an USB Video Class(UVC) compliant camera module designed for portable notebook PC image applications. It is a highly integrated system that provides a cost-effective and performance solution for video capture application. It shall be a reliable device that is embedded in notebook PC to transfer video data through USB interface to notebook PC.
AG5050H1D-SJ-AB0 provides Auto Focus and LED flashlight functions or Digital Microphone opation.
產品應用

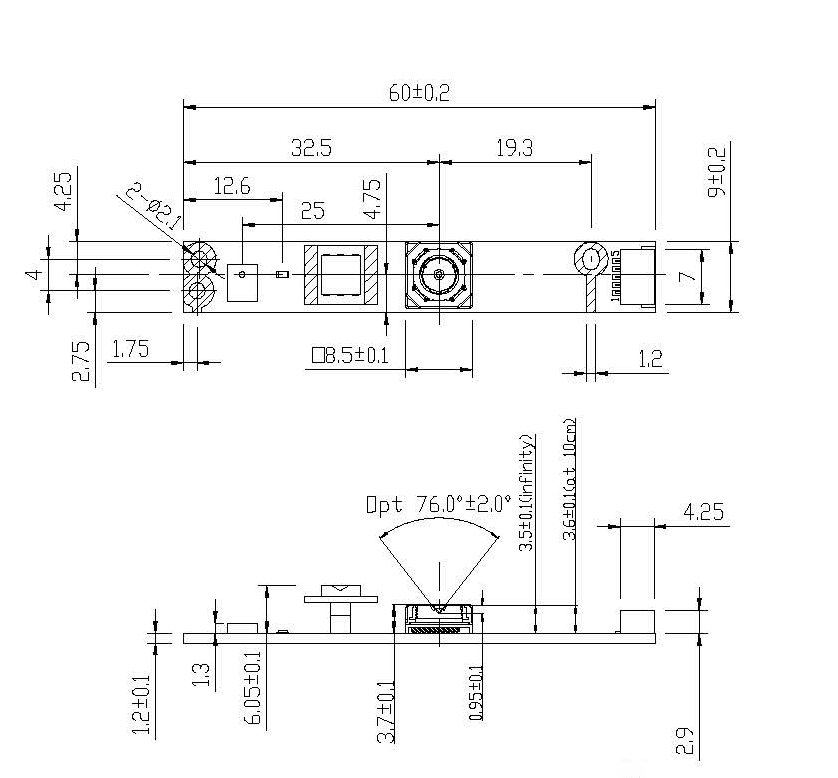

| Dimension (LWH/mm) | 60.0mm x 9.0mm x 7.25mm |
| Power Consumption | +4.75V ~ +5.25V |
| Output Interface | USB2.0 (480Mbit/sec) |
| Operating Temperature | 0℃ to +60℃ |
| Field of View |
Diagonal: 76.0° (+/-2°) |
| OS Support | Win10, Linux, Android |
| Compatibility | USB 2.0 Video Class Compliant, Microsoft WHQL Certified |
| Image Sensor | 1/5-inch QSXGA CMOS Image Sensor |
| Active Pixels | 2592(H) x 1944(V) |
| Pixel size | 1.12um x 1.12um |
