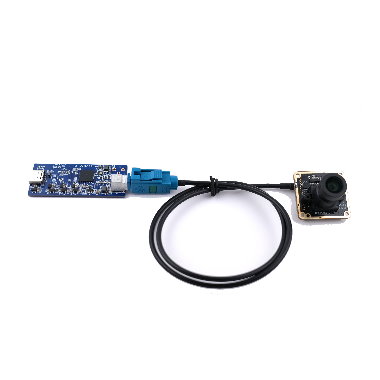

EX-SDI USB Camera FHD 60FPS (長距離相機)

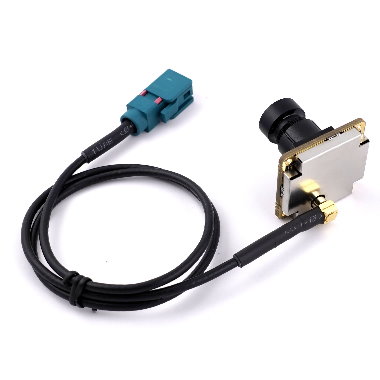

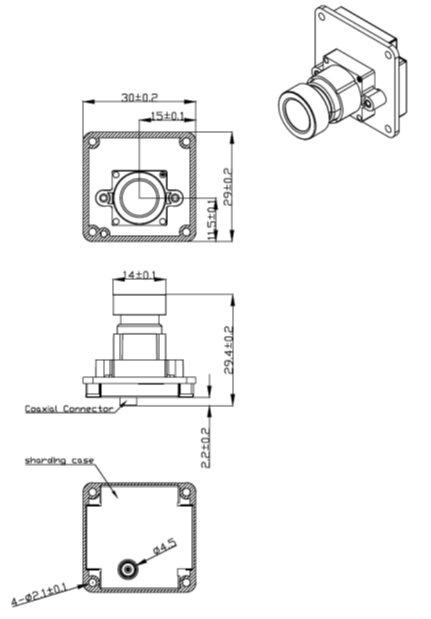

The TEB33200-UACMKJ0 is a camera for automotive camera systems up to 1080P 60 fps. It supports HDR, also features AI digital noise reduction, adaptive contrast enhancer equipped with AE/AF/AWB control to achieve high quality image.
It supports EX-SDI output for efficient long-distance image transmission via coaxial cable. Furthermore, it supports not only single-cable solutions for user convenience but also PoC (Power over Coaxial) and UCC (Use Coaxial Control), further enhancing ease of use and practicality.

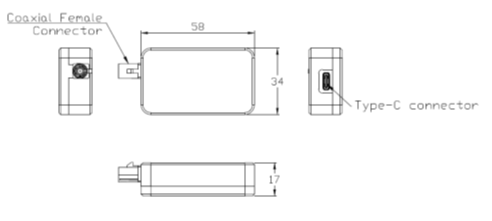

The SE257A is an EX-SDI TO UVC converter
It supports EX-SDI input and USB video output for efficient image transmission based on coaxial cable. In addition, it supports not only one-cable solution for user convenience, but also PoC(Power over Coax), Ucc(Up the Coax Control), enhancing convenience and utility.
| CMOS Sensor | Sony STARVIS IMX462 |
| EX-SDI TX/RX |
EX-SDI TX EN801S EX-SDI RX DL257 |
| Output Format | USB (UVC) / MJPG |
| Connector | Coaxial Connector RG174 |
| Image Characteristics |
Full HD 1080p 60 frames with HDR Superior low−light performance AI Digital Noise Reduction Adaptive contrast enhancer equipped with AE/AF/AWB control |
| Field of View (FOV) |
DFOV 71.4° HFOV 61.8° VFOV 34.2° |
| Signal Transmission Distance | Twisted wire is 30m (RG174) |
| Operating Temperature | -30℃ to +85℃ |
| Store Temperature | -40℃ to +85℃ |
| Input Voltage | Standard 5V 200mA |
| Transmission Rate | 270Mbps |
| Image Latency |
100ms (30m Distance) 0.1秒 (30公尺距離) |
