1080p fisheye lens correction, HDR, Night vision (HN3820B15)
This is a versatile outdoor surveillance Camaera with the following features :
1. Fisheye lens correction (De-warping)
2. HDR (100dB)
3. Starlight night vision
4. De-Noise (3DNR)
5. ePTZ
6. Veritical image
7. Environmental De-Fogging
8. Ouput Format MJPG H.264
9. Wide temperature (+70° ~ -40°)
規格書下載
產品應用

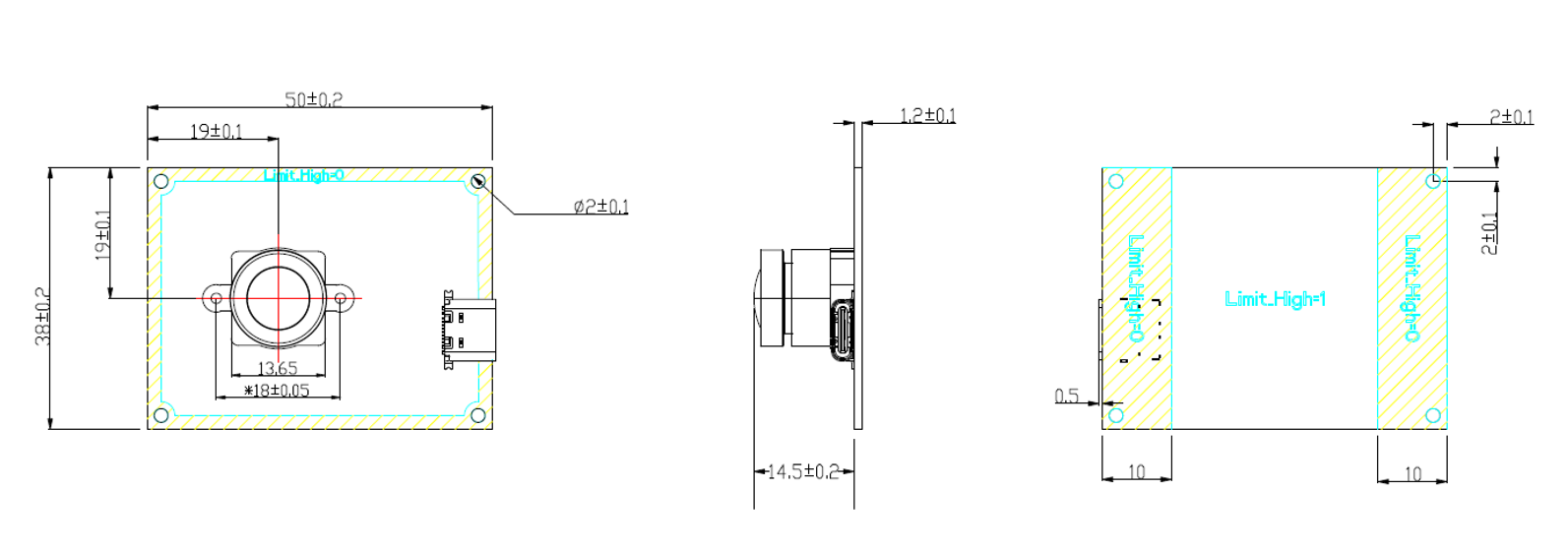

| Dimension (LWH/mm) | 50.0 x 38.0 x 15.7±0.2 mm (include PCB Thickness) |
| Output Interface | USB 2.0 (UVC) |
| Image/Video Format | YUY2 & MJPG & H.264 |
| Output size |
640x480 1280x720 1920x1080 |
| Operating Temperature | -30℃ to +70℃ |
| Power Consumption |
Input Voltage :5VDC (4.85~5.25V) Operating Current (Max.):300mA (MJPG 1080P) |
| OS Supported | Window11, Linux, Android |
| Support Sensor Size | Support to 2M(1920x1080) sensor |
| Optical format | 1/2.8-inch Full HD CMOS Sensor (NT99235) |
| Active resolution | 1920H×1080V |
| Unit pixel size | 2.9μm x 2.9μm |
| UV Coating | Term 1 year |
| F/No. | 2.4土5% |
| Field of View |
183° (Diagonal) 181° (Horizontal) 93° (Vertical) |
| Focus Distance | 50cm |
| Construction | 6Glass + IR650 |
