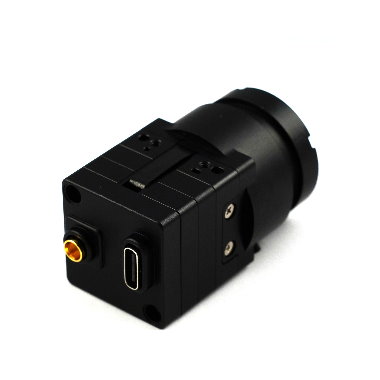

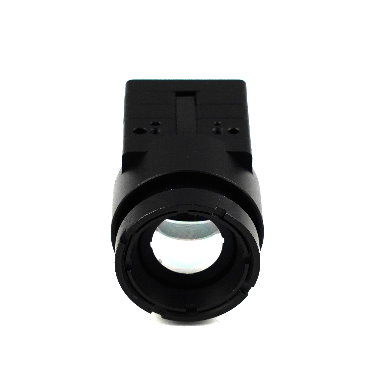

640 x 480 Uncooled VOx / Microbolometer
-
Kay Parameter
- NDAA Compliant : 100% made in Taiwan. Supply Chain NDAA compliant.
- Small & Lightweight : 24(H) x24(W)mm & only 13g weight, best for drone & handheld imager.
- High Accuracy & Speed : Best Radiometric Accuracy with non-linear regression AI.Algorithm. +/-1.5oC @10~100oC obj. (+/-0.5oC for body temp. ) & 30 FPS and excellent AGC/DDE performance, catch every detail for video surveillance
- Flexible Interface : Dual channel output for image & raw data through single ordual video outputs selectively, easy to integrate. Two temp. modes switchable (High/Low Gain), observe up to 500oC, cover 95% industrial inspection demand
Applications
- Temperature Screening
- Industrial Inspection
- Drone
- Surveillance
- Handheld Thermal Imager
- Automotive
產品應用
| Resolution | 640 x 480 |
| Wavelength | 8 - 14μm |
| Sensor Pitch | 12μm |
| NETD | 50mK |
| Max. frame rate | 30 FPS |
| Scene dynamic range | High gain: 5°C to 120°C Low gain: 5°C to 500°C |
| Radiometric Accuracy | HG: 10~100℃, +/-3℃, Ta: -20~50℃ LG: 30~500℃, +/-5℃, Ta: -20~50℃ (+/-1.5℃, Ta: 25℃) |
| Shutter/ Shutter-less | Shutter-less(Std.) Shutter (Opt.) |

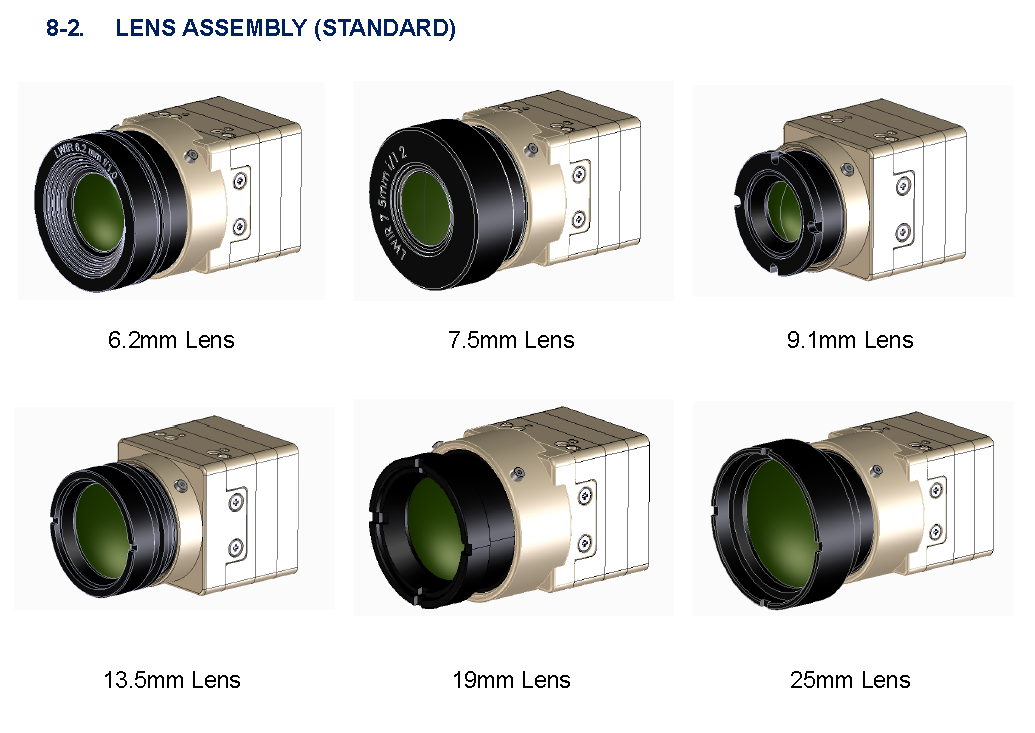

| Lens Options | 6.2 / 7.5 / 9.1 / 10/ 13.5 / 19 / 25mm ( Others upon request ) |
| Non-Uniformity Correction | Factory Calibration Flat Field Correction |
| Video Output | BT656, UVC, CMOS, RTSP |

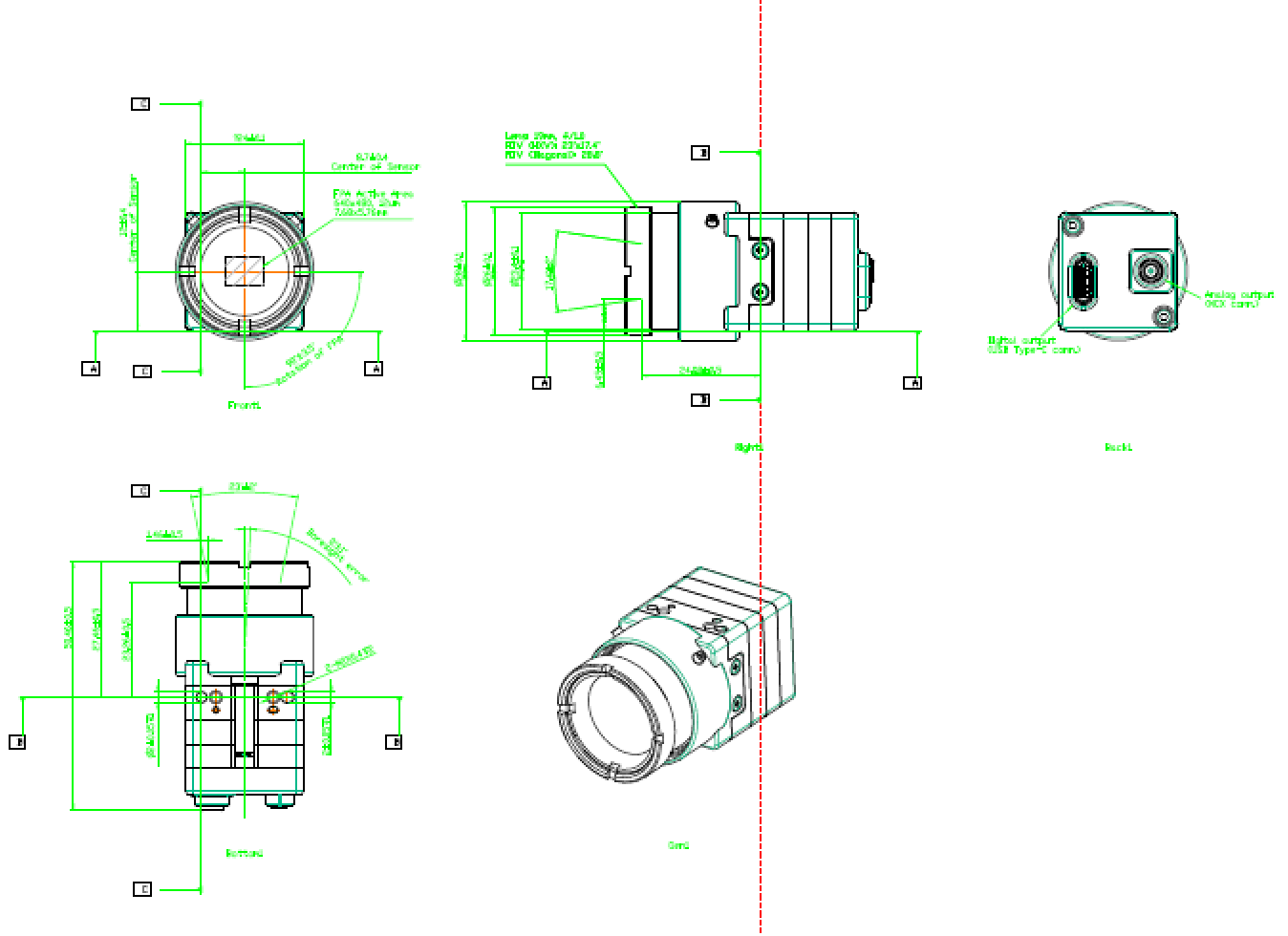

| Size & Weight (w/o Lens) | 24mmx24x14.9mm, 13.0g |
| Accessory ( Optional ) | USB + Analog VPC |
