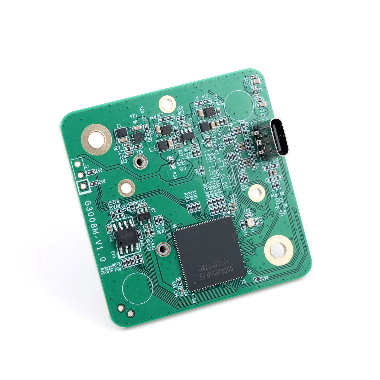

6MP fisheye lens correction (GR360)
Built on a 1:1 sensor architecture and an integrated fisheye distortion‑correction ISP, the system maintains high image quality across ultra‑wide fields of view while effectively minimizing edge deformation inherent to fisheye optics.
Features
- Compliant to USB2.0 and USB Video Class & USB Audio Class
- Support still image capture and video streaming
- Quickly switch the display mode via the button
- Provide Multi-Display Modes

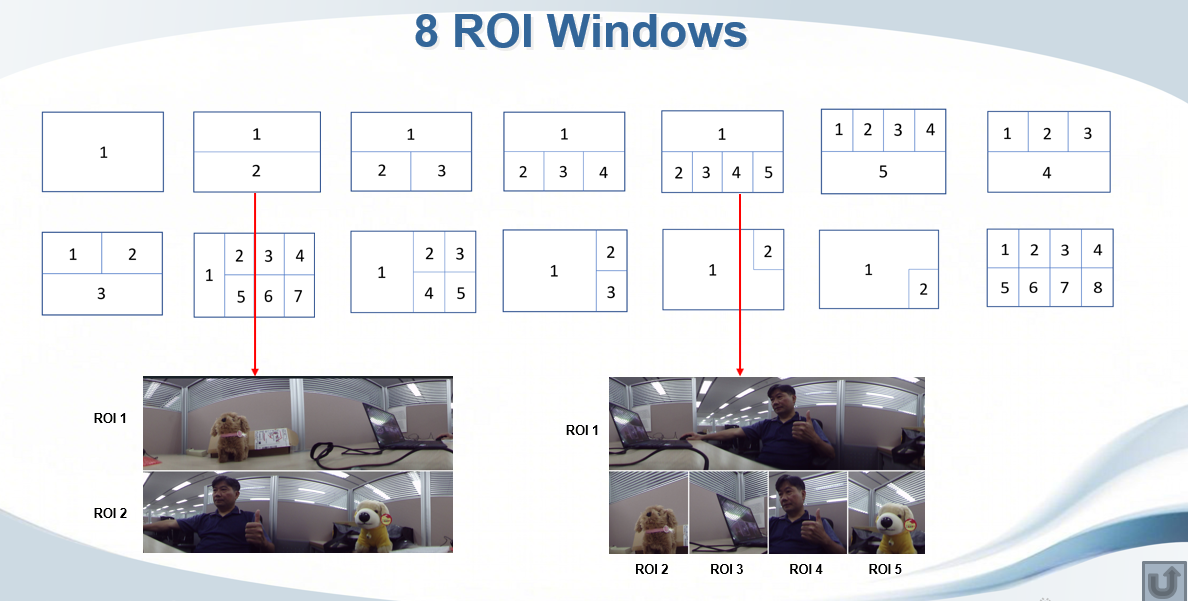

- 8 ROI Windows in a frame
- Use the button to switch to mute mode
- Support 1080p to 30fps
- Automatic image control (AEC / AWB)
- LED indicated (Camera active - Blue / Mute - Red)
規格書下載
產品應用
| Sensor Specification |
1/2.5-inch 6MP CMOS Sensor Active resolution 2564H×2564V Unit pixel size 2.0μm x 2.0μm |
| Power Supply | +4.75V ~ +5.25V |
| Image/Video Format | YUY2, MJPG |
| Output Interface | USB2.0 (480Mbit/sec) |
| Operating Temperature | 0℃ to +55℃ |
| Compatibility |
USB Video Class USB Audio Class |
| Multiple DeWarp ( ROI Windows in a frame ) |
1. Fisheye, 2. Panorama, 3. Single, 4. Bird, 5. Multi-Views, 6. 360°, 7. ePTZ, 8. PiP, |
| Multi-Display Modes |
360° Panorama View 360° Meeting View 360° Panorama + Single View 360° Panorama + Dual View 360° Conner View 130° Panorama View |

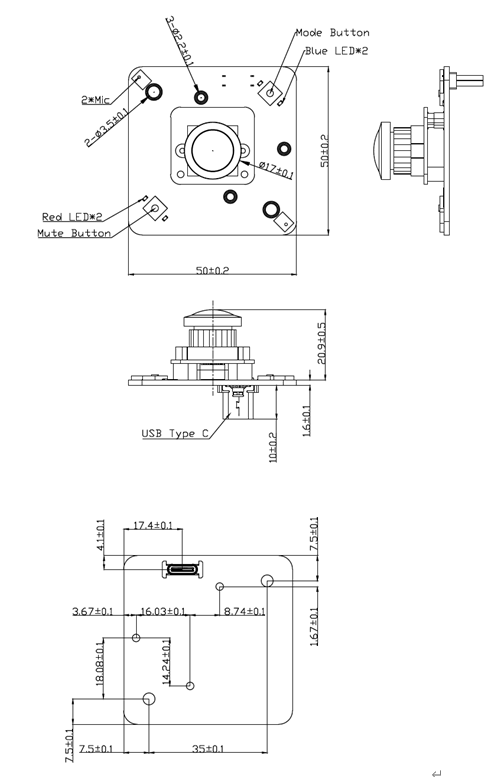

| Dimension (mm) | 50.0mm x50.0mm x 32.5mm |
| OS Supported | Win11, Linux, Android |
| Element | 6 Glass + IR |
| F Number | 2.5±5% |
| Field of view |
Diagonal 210° Horizontal 210° Vertical 210° |
