USB Digital Microphone Module; Digital Mic*1 (AG5120C24-MIC)
AG5120C24-MIC is an USB Audio Class(UAC) compliant microphone module with Audio feature, designed for portable notebook PC Audio applications. It is made up of the following components, backend, PCB, audio processing circuit, digital microphone and connector, to come out a digital Audio device.
產品應用

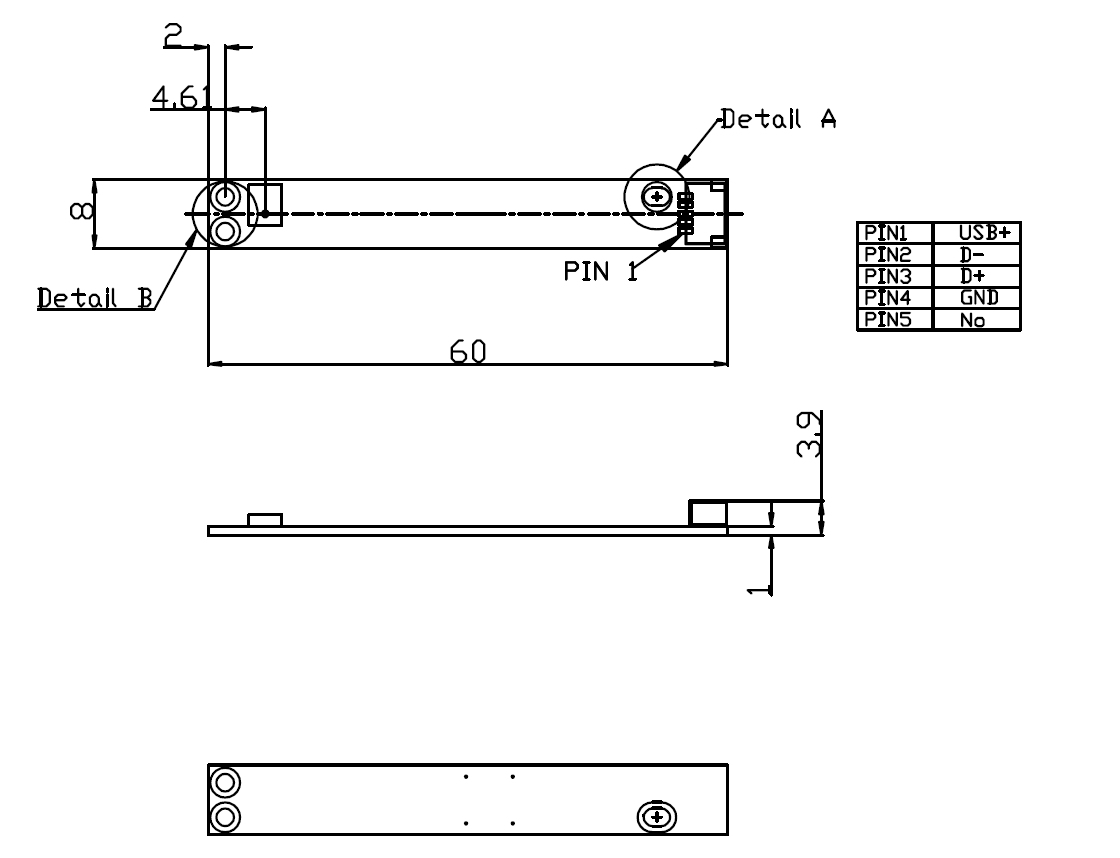

| Dimension (LWH/mm) | 60.0 x 8.0 x 3.9±0.2 mm (including PCB Thickness) |
| Power Consumption | +3.15V ~ +5.15V |
| Output Interface | USB2.0 (480Mbit/sec) & USB1.1 |
| Operating Temperature | 0℃ to +50℃ |
| OS Support | Win7, Win8, Win8.1, Win10, Linux, Android |
| Compatibility | USB 2.0 Audio class Compliant, Microsoft WHQL Certified |
| Sensitivity | -22dBFS (+/-1dB) |
| Current Consumption | 590uA |
| S/N Ratio | 61dB |
